Leviton mod # 8380-r surge suppressor recepticle

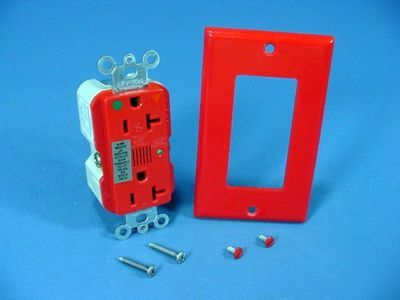

{6} LEVITON MOD # 8380-R SURGE SUPPRESSOR 20 AMP ISOLATED GROUND RECEPTICLES W/ AUDIBLE ALARM & LED
THESE ITEMS ARE NEW & NEVER USED
YOU WANT IT???....YOU GOT IT!!!
NO DEADBEATS, NO BACK OUTS, OR I DIDN'T KNOWS
Back and side wired receptacle NEMA 5-20R, 20A/125V.
* Decora-styled TVSS receptacles protect sensitive electronics equipment against transient voltage surges
* UL 1449 suppressed voltage ratings:400V for all 3 modes (line-neutral, line-ground, neutral ground)
* Fuse-protected internal circuitry
* Super impact-resistant Lexan face
* RFI and EMI noise filtration (-35db, @5KHz-5MHz)
* Hospital grade and isolated ground versions include green LED indicator light that goes out and audible alarm that sounds when protection is lost
* Industrial grade versions include green LED inficator light that goes out when protection is lost
* Maximum continous operating voltage: 150V
* Maximum single-pulse transient current (8 X 20 ms Amps peak) 24,000A (L-N), 12,000A (L-G), 12,000 (N-G)
* Rated single pulse transient energy (10 x 1000ms, impulse) 320 joules
