Fluke microtest omniscanner CAT6 omni fiber sm mm

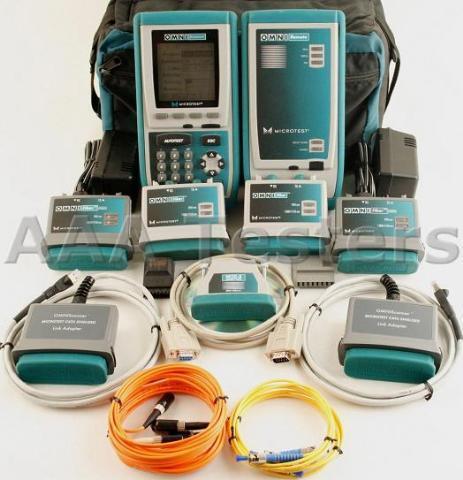

* Omnifiber 850nm/13nm Multimode Fiber Module Set
* Omnifiber 1310nm/1550nm Singlemode Fiber Module Set
* (2) Cat5/5e/6 Link Adapters
* Mod-8 Channel Adapter for Setting Reference
* OMNISanner Manual on CD-ROM
* LinkWare Cable Management Software On CD-ROM
Fluke Microtest OMNIScanner Digital Cable Analyzer. Certify Cat5 & Cat5e Cable
Test & Certify Cat6 & Multimode 850nm 1300nm & Single Mode 1310nm 1550nm Fiber Optic Cabling
OMNISCANNER is the most advanced hand-held certification and diagnostic tool for the verification of copper links. The Category 7, 6, 5E (Enhanced), 5 and ISO Class F, E, D, and C tester has an extended frequency range of 300 MHz. OMNISCANNER provides full software compliance with TIA and ISO/IEC requirements for measurement reporting and analysis (including Length, Delay, ACR, NEXT, ELFEXT, Return Loss, Resistance, PSNEXT, PSACR, PSELFEXT and Attenuation). In addition, OMNISCANNER measures Length, Delay, Impedance, and Resistance on coaxial cabling.
OMNISCANNER s graphical user interface consists of a backlit LCD display, quick access menus, arrow keys, and descriptive menu options that guide you through certifying or troubleshooting cabling systems. For test and certification of twisted pair cabling, the OMNISCANNER requires the OMNIREMOTE unit at the opposite end of the cabling link under test. OMNISCANNER communicates with OMNIREMOTE to obtain status and perform measurements from both ends of the link.
* Instantly pinpoint specific connection failures with S-Bands diagnostics
* Test up to 300 MHz on class F links
* Dual-fiber, dual wavelength, Multimode & Single Mode certification with OMNIFiber Adapters
* Manufacturer-specific cable libraries pre-installed
* Easily manage and document copper and fiber links with new LinkWare software
Certify multimode and singlemode fiber with Fluke Networks OMNIFiber Adapters.
All of Fluke Networks OMNIFiber Adapters:
* Test two fibers at two wavelengths in a single automated operation.
* Measure fibe r length, propagation delay and optical loss.
* Provide clear PASS or FAIL indication with automated results analysis.
* Enable bi-directional testing without swapping main and remote units.
* Feature standards and fiber cable libraries for easy set-up.
* Incorporate interchangeable connector adapters for simple network connection.
* Communicate with LinkWare Cable Test Man agement Software.
* Quickly snap onto any OMNIScanner series cable analyzer.
* Are ruggedly built for demanding field use.
* Test multimode fiber at 850 nm and 1300 nm with the LED-base d OMNIFiber MM.
* Test singlemode fiber at 1310 nm and 1550 nm with the laser-based OMNIFiber SM.
Your network may contain different fiber types: multimode or singlemode. The way to
accurately test and certify your network is with an adapter designed for the job. Fluke
Networks offers two OMNIFiber adapters. Use the OMNIFiber MM adapter for multimode fiber. Its LED sources ensure accurate, standards-compliant results when testing multimode fiber. Use the OMNIFiber SM adapter for singlemode fiber. Its laser sources ensure accurate, standards-compliant results when testing singlemode fiber.
Using an OMNIFiber adapter, OMNIScanner provides a one-button Autotest that measures fiber length and op tical loss on two fibers at two wavelengths in a single automated operation. The scanner then compares the results to the industry standard you select and instantly provides a clear PASS or FAIL i ndication. Test more fibers in less time with OMNIFiber.
OMNIFiber adapters connect easily to the network. Interchangeable connector adapters permit simple network connection and straightforward reference power measurement. Interchangeable connector adapters are available in the most popular connector styles.
9.00 x 9.85 x 3.94 cm (3.5 x 3.9 x 1.6 in)
OMNIFiber MM: LED; OMNIFiber SM: Fabry-Perot (FP) laser
OMNIFiber MM: 850 and 1300 nm; OMNIFiber SM: 1310 and 1550 nm
OMNIFiber MM: -19 dBm; OMNIFiber SM: -11 dBm
Power output stability (8 hours)
+/- 0.25 dB at 23 C, 45% to 75% RH, -20 dBm for 850/1300/1310 nm, -10 dBm for 1550 nm
Interchangeable Connector Adapters: ST, SC, FC, universal
850 nm, 1300 nm, 1310 nm, 1550 nm
OMNIFiber MM: 2000 m; OMNIFiber SM: 16000 m
OMNIFiber MM: 1 m (1 ft); OMNIFiber SM: 1 m from 0 2000 m OMNIFiber SM: 2 m from 2001 16000 m
