New 80W CO2 laser power supply / engraver / engraving
LASTEST MODAL 80W Laser Power Supply
Manufacturer Suggested Retail Price:1099USD
Please see the following pictureS show you how to connect
This high frequency CO2 laser power supply is dedicated for CO2 laser device, with high efficiency, high
frequency and short response time. The compact and handy power supply has excellent compatibility with
laser device and can be directly connected. With this power supply, laser device will be easily started up
and well operated with higher conversion efficiency and longer expectation of life. Used with some specific
laser device, peak output power of the laser would be up to 90W and average output power is 80W.
The power output is adjustable through TTL or Resistive. It support any CO2 laser for up
to 80Watt. An excellence for most engraving/cutting machine Double cooling fan provide an excellence air
1 Input voltage: AC220V or AC110V (to be specified when placing order).
2 Maximum output voltage:DC 28KV.
3 Maximum output current: DC 28mA.
4 Isolation Withstand voltage: Input-output, input-enclosure: AC2000V-10mA-60s; negative pole of output connected to enclosure.
5. Protection: with well-grounded enclosure, output circuit of power supply can be
open for short time (but arc between positive pole and enclosure should be avoided).
6 Response time (from time of input being available to the output current being up to nominal value): 1ms.
7 TTL voltage level control: effective voltage level can be high or low through setting.
8 Protection switch: for detection of cooling water, to protect laser device; or activate with enclosure is opened.
9 Laser power adjustment: (1) by adjusting the output current of power supply through resistor; (2) through PWM control (magnitude being TTL voltage level).
10. Environmental requirements: temperature (-10~ 40 ), relative humidity 85%.
Please see the User Manual (Click Here to download it)to see how to set up and use this item.

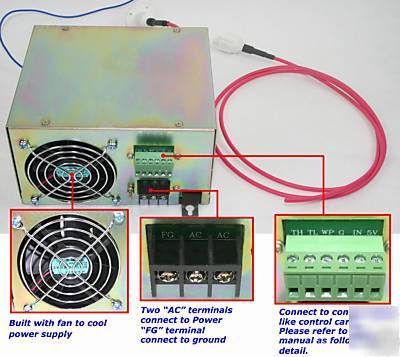

Please also refer to the two pictures show you how to connect as follows
Retail price for this item is 1099USD. Now you only need to pay less than half of retail price and you will also have the fully guarantee for 48 months.
