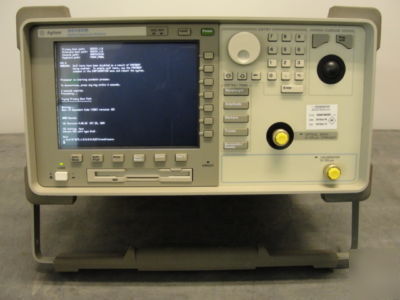

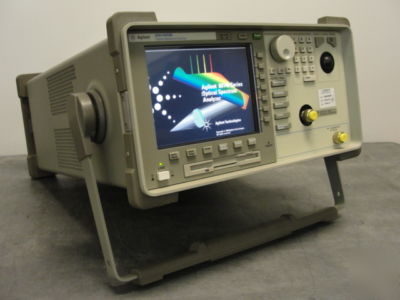

Hp / agilent 86145B optical spectrum analyzer + opt 006
The Agilent 86145B Optical Spectrum Analyzer (OSA) is the portable version of the popular Agilent 86142B OSA, that is best suited for WDM component and system test applications where power and wavelength accuracy, dynamic range and low polarization dependency are key. The high performance capability of the Agilent 86145B OSA combined with the advanced feature set and on board measurement applications enables you to make highly accurate measurements quickly and easily. These advanced features have been tailored towards increasing your product yields, maximizing manufacturing capacity and minimizing costs. The on-board measurement applications have been designed for ease of use requiring minimal training while retaining flexibility to customize measurements for individual needs.
Features and specifications of the Agilent 86145B Optical Spectrum Analyzer include:
* Wavelength: 600 nm to 1700 nm
* Reproducibility: 0.002 nm (With applied input fiber 9/125 m; 1min)
* Span Range: 0.2 nm to full range and zero span
* After calibration with internal source and with enhanced wavelength calibration for specified range:
* 1480-1570 nm: Typ 0.01 nm (At room temp; with applied input fiber 9/125 m)
* 1570-1620 nm: Typ 0.025 nm (At room temp; with applied input fiber 9/125 m)
* After calibration with external reference source(s) 10 nm of calibration reference point(s):
* Typ 0.01 nm (At room temp, with applied input fiber 9/125 m)
* After user calibration over full wavelength range (600-1700 nm):
* 0.2 nm (T(20-30 C), with applied input fiber 9/125 m))
* 0.5 nm (Factory cal. 2 yr. cycle; T(20-30 C); with applied input fiber 9/125 m)
* Tuning Repeatability: 0.002 nm (With applied input fiber 9/125 m; 1min)
* Resolution Bandwidth (RBW)
* FWHM (3 dB Bandwidth): 0.06, 0.1, 0.2, 0.5, 1, 2, 5, 10 nm
* Noise Marker Bandwidth Accuracy using noise markers 1525-1610 nm
* 600-750 nm: -60dBm (T(0-30 C), 2nd order)
* 750-900 nm: -75dBm (T(0-30 C), 2nd order)
* 900-1250 nm: -75 dBm (T(0-30 C)
* 1250-1610 nm: -90 dBm (T(0-30 C)
* 1610-1700 nm: -80 dBm (T(20-30 C)
* Maximum Measurement Power:
* 1525-1700 nm: Typ +15 dBm per channel, +30 dBm total
* 600-1000 nm: Typ +15 dBm per channel, +30 dBm total
* 1000-1525 nm: Typ +12 dBm per channel, +30 dBm total
* Total Safe Power: +30 dBm
* Total power within any 10 nm portion of the spectrum: +23 dBm
* at 20dBm, 1310 nm/1550 nm: 0.5 dB (For resolution 0.1 nm, with applied input fiber 9/125 m)
* Autorange off: 0.05 dB: T(20-30 C), with applied input fiber 9/125 m
* Autorange on: 0.07 dB: T(20-30 C), with applied input fiber 9/125 m
* Display Scale (log scale): 0.01-20 dB/DIV, -120 to +90 dBm
* (1310 nm, 1550 nm), 1 minute: 0.01 dB (For signals within 8 dB of top of screen, with applied input fiber 9/125 m)
* 15 minutes: 0.02 dB (Typ., with applied input fiber 9/125 m)
* 1530 nm, 1565 nm: 0.2 dB
* Dynamic Range (In 0.1 nm Resolution Bandwidth):
* 1250-1610 nm (chop mode on) 0.5 nm, 1nm, 5 nm: Typ -70 dB
* at 0.8 nm ( 100 GHz at 1550 nm): -60 dB
* at 0.5 nm ( 62.5 GHz at 1550 nm): -58 dB
* at 0.4 nm ( 50 GHz at 1550 nm): -55 dB
* at 0.2 nm ( 25 GHz at 1550 nm): Typ -40 dB
* Straight Connector (9/125 m): > 35 dB
* Max. Sweep Rate: Typ 40 nm/56.3 ms
* Max. Sampling Rate in Zero Span: Typ 50 s/trace point
* 50 nm span, auto zero off: Typ < 180 ms
* 50 nm span, auto zero on: Typ < 340 ms
* 100 nm span: Typ < 400 ms
* 500 nm span: Typ < 650 ms
* Jitter (distributed uniformly): Typ < 0.5 s
* Trigger delay range: Typ 2 s-6.5 ms
* Turn On ( 2 s after rising edge): Typ < 0.2 dB
* Turn Off ( 10 s after falling edge): < 0.2 dB (30 dB extinction)
* Remote Control: Web enabled controls
* Compatibility: IEEE-488.1, IEEE-488-2 (100%)

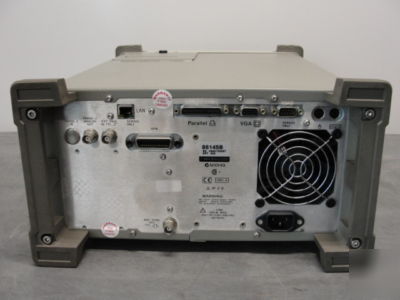

* Interfaces: LAN, GPIB, Parallel Printer Port, External VGA Monitor, Keyboard and Mouse (PS/2)
* Instrument Drivers: Universal Instrument Drivers (PNP), Compatible with VEE, Labview, Visual Basic and C++
*Unit has been tested and meets all operational standards - CURRENT CALIBRATION!!!
Internal Wavelength Calibrator
