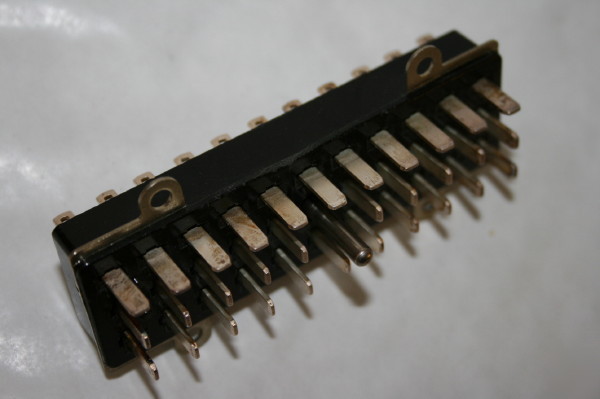

33 pin plessey panel mount male jones connector FD2F6
This type is 33 way (primarily designed as a chassis mount) male with 4 hole mounting plates.
Eleven of the connections are at a 90 degree angle to the other twenty-two, and one of the pins also acts as a locating pin thus avoiding an incorrect connection.
Superb vintage military specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.
Centers of the 4 holes for mounting are approx 56mm x 35mm
for other pairs of multi-way connectors and matching individual other halves.
POSTAGE: UK 2.00 WORLDWIDE: 3.00
