Tsi alnor EBT721-A1 balometer capture hood (flow hood)

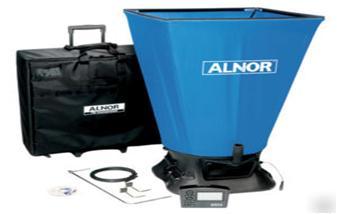

EBT721-A1 Balometer Capture Hood - NEW IN BOX
2' x 2' Air capture hood-frame-base
Wheeled luggage-style carrying case
LogDat2 downloading software and serial interface cable
(8) AA rechargeable NiMH batteries
range differential pressure 15 in. H2O, (3735 Pa) 150 in. H2O maximum safe operating pressure
absolute pressure 15 to 40 in. Hg (356 to 1016 Hg)
velocity 25 to 8,000 ft/min (0.125 to 40 m/s) pitot probes;
volume 25 to 2,500 ft3/m (42 to 4250 m3/h) capture hood
RH 0 to 95% RH (optional probe)
temperature -40 to 250 degrees F (-40 to 121 degrees C) probe dependant
resolution pressure 0.00001 in. H2O (0.001 Pa) Static & Differential Pressure
temperature 0.1 degrees F (0.1 degrees C)
accuracy pressure 2% of reading 0.001 in. H2O, (0.025 mm H2O; 2% of reading 0.001 in. Hg) Absolute
velocity 3% of reading 7 ft/min (0.04 m/s) 25 to 8,000 ft/min (all velocity probes) > 50 ft/min
volume 3% of reading 7 ft3 /min 25 to 2,500 ft3/min > 50 ft/min
temperature 0.5 degrees F (0.3 degrees C) from 32 to 160 degrees F (0 to 71 degrees C) typically 1.0 degrees F (0.6 degrees C) from -40 to 32 degrees F (-40 to 0 degrees C) and from 160 to 250 degrees F (71 to 121 degrees C)
units pressure in. H2O, Pa, mm Hg, in. Hg
volume ft3/min, m3/h, m3/m, l/s
temperature degrees F, degrees C
EBT721-A1 Electronic Balancing Tool
