> Tekelec chameleon 32-plus protocol analyzer/simulator
Tekelec chameleon 32-plus protocol analyzer/simulator
Condition: Used in working condition.

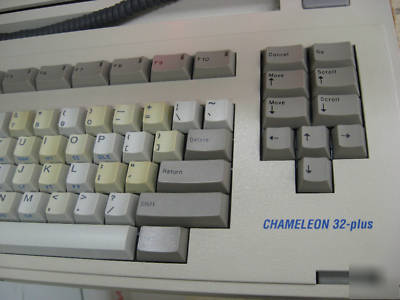

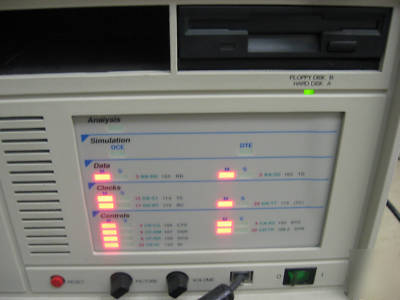

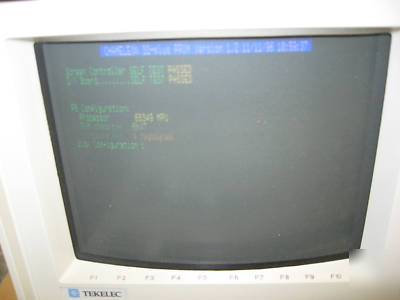

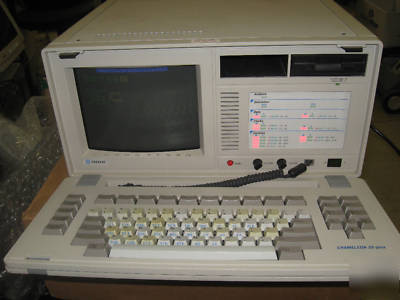

Just arrived and powers on properly going through start-up to a menu screen. Screen is in good shape, keyboard is in good shape, and the analyzer is in overall good cosmetic condition. We do not know how to actually test this but we are selling this with a NO DOA warranty and we will guarantee that this unit will power on. This unit is fairly heavy. It weights around 70 lbs after packing.
Protocol Analyzer and Simulator
* Sophisticated network monitoring features
* Advanced simulation capabilities
* Easy-to-use, user-friendly interface
* Extensive remote capabilities and support interfaces
* Versatile dual port option
X.25, X.75, QLLC, PHS, SNA, Async, Bisync, ISDN (many U.S. and international varieties), SS7, OSI (X.400, CMISE/CMIP, FTAM), DPNSS, DASS 2, DMI, V.120, DDCMP, 2B1QU-Interface, Frame Relay, ASAI, SCAI, G4FAX, TCP/IP
* Analysis: Real-time, split display and scrollable history buffer showing decode of data
* Dual Line: Displays DCE and DTE data in byte-relative order
* Direct-to-Disk: Allows capture and replay of up to 30 Mbytes of test data
* Statistics: Layer one, two and three statistics for X.25, SNA, ISDN, SS7 and Bisync; 2B1Q and PRI line state statistics
* Triggering: Capture data based on timers, counters, or data patterns detected on the line
* BASIC-like Simulation Languages (Optional)
* Simulation packages (Optional): NT/TE Simulator, X.25 Load Generator, ISDN CPE Testbed, ISDN Switch Simulator, and others available individually
* Bit Error Rate Testing (Standard): User-defined or standard data patterns (CCITT Blue Book 1988)
* Line Speeds: 1.544 Mbps with ANSI Primary Interface (PRI), 2.048 Mbps with CEPT PRI, 192 Kbps with Basic Rate Interface (BRI), 160 Kbps with U-Interface, 256 Kbps with V-type, 64 Kbps with X.21 and G.703, 56 Kbps with DSCS
* RAM Capture Buffer: 500 Kbyte per port
* Direct-to-Disk Storage Capacity: 30 Mbyte
One double density, double sided 720 Kbyte, 3.5 inch MS-DOS format floppy drive; one shock mounted 40 Mbyte hard drive

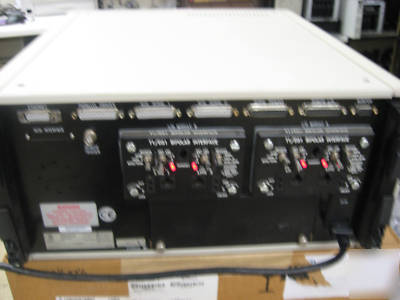

Centronics parallel printer port, RS232 remote control port, RS232 serial printer port, programmable RS232 auxiliary port, RS232 auxiliary port for system debugging, RGB output port for external color monitor.
* Standard: V.24 (RS232)
* Optional: ISDN BRI (with A-law or -law codes), ISDN PRI (ANSI or CEPT), U (2B1Q), X.21, DSCS, G.703, V.35, V.36 (RS449, 422), Digital Test Access (DTA)
