> Fadal cnc pcb-0009 motherboard backplane circuit board
Fadal cnc pcb-0009 motherboard backplane circuit board

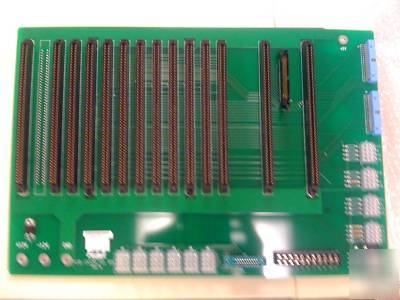

About the Fadal 1060 Motherboard
The backplane or motherboard provides power and the interconnecting circuitry between the PCBs. The current backplane (1060-1A) has 14 board slots. The reduction in slots from the original (1060-0) was done for cost savings since with the newer PCBs the slots were no longer used. Also the new motherboard does not have TB1 and TB2 so if MFunctions are used an M-Function Interface board (1340-0) and cable (WIR-1679) are required.
A method of forming a substrate includes providing first and second ground planes and electrically coupling the first and second ground planes. A signal passed by the first ground plane resulting from an electrostatic discharge (ESD) event interacts with a signal passed by the second ground plane resulting from the ESD event. The first and second ground planes are substantially isolated when the first and second ground planes are coupled to a ground plane of a printed circuit board (PCB).
