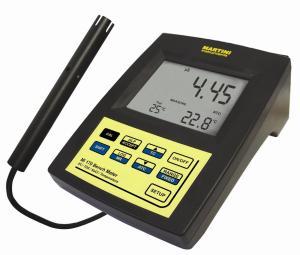

Combined glp ec/tds/nacl/c logging bench meter
Mi170 measures 4 different parameters - EC, TDS (Total Dissolved Solids), percentage of NaCl and temperature in a variety of ranges. The auto-ranging feature for EC and TDS measurements automatically sets the resolution suitable to the tested sample. All measurements can be temperature compensated at 20 or 25C and the compensation coefficient is selectable by the user.The automatic temperature compensation can also be disabled for measuring the actual conductivity value. The stability indicator on the LCD ensures accuracy.Conductivity readings are performed with the 4-ring probe supplied with the meter. the GLP feature allows users to store and recall data on system status.PC compatible through an RS232 or USB port.Range:EC:0.00 - 29.99 microS/cm; 30 to 299.9 microS/cm; 300 to 2999 microS/cm; 3.00 to 29.99 mS/cm; 30.0 to 200.0 mS/cm; up to 500.0 mS/cm actual conductivityTDS: 0.00 to 14.99 mg/L; 15.0 to 149.9 mg/L; 150 to 1499 mg/L; 1.5 to 14.99 g/L; 15.0 to 100.0 g/L; up to 400 g/L actual TDSNaCl: 0.0 to 400.0%Temp: 0.1C / 0.1FResolution:EC: 0.01 microS/cm; 0.1 microS/cm; 1.0 microS/cm; 0.01 mS/cm; 0.1 mS/cmTDS: 0.01 mg/L; 0.1 mg/L; 0.01 g/L; 0.1 g/LNaCl: 0.1%Temp: 0.1C / 0.1FAccuracy:EC: +/- 1% of reading +/- (0.05 microS/cm or 1 digit)TDS: "" "" +/- (0.03 mg/L or 1 digit)NaCl: "" "" Temp: +/- 0.4C / 0.8FCalibration:EC: 1 point slope calibration with 6 memorized solutions(84.0, 1413 microS/cm, 5.00 mS/cm, 12.88, 80.0, 111.8)NaCl: 1 point, with MA9066 calibration solutionTemp: 2 points, 0 to 50C / 32 to 12FTemp Compensation: automatic or manual, from -20.0 to 120.0C / -4.0 to 248.0FTemp Coefficient: selectable from 0.00 to 6.00% / C (EC and TDS only)Probe: MA814D/1 4-ring probe with built-in temperature sensor (include)TDS Factor: 0.40 to 0.80 (default value is 0.50)Log on Demand: up to 50 samples on each range (EC, TDS, NaCl)GLP: last EC, NaCl calibration dataPC Interface: RS232 / USB Opto-isolatedEnvironment: 0 to 50C / 32 to 122F; max RH 95%Power Supply: 12 VDC power adapter (included)Dimensions: 230 x 160 x 95mmWeight: 0.9 kg
Technical assistance application instructions available from Milwaukee Instruments at 1-(***)-283-7837.
