Berkeley varitronics yellowjacket wi-fi analysis system
Berkeley Varitronics Systems Yellowjacket
The Yellowjacket is an 802.11b Analysis System. It consists of a Compaq iPAQ PocketPC coupled with custom hardware and software by BVS. This system contains a variety of features to analyze 802.11b networks including spectrum analysis over all 14 channels (2.401 - 2.495 GHz), a list of AP s and/or stations over all 14 channels, multi-path and packet-error rate information for each individual MAC address. The Yellowjacket also contains a 'Geiger-counter' feature to locate a single AP/ STAtion via audio/visual aids and a security feature to warn the user of possible unauthorized AP / Stations in the area based on a list of authorized MAC addresses. The data from a Yellowjacket may be logged into resident memory for transfer to a desktop PC at a later time and then be converted from binary to ASCII using 'Chameleon WLAN'.

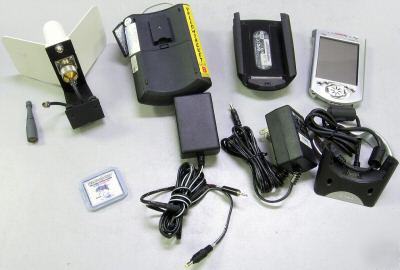

* Yellowjacket 802.11B Receiver
* Yellowjacket Software CF Card (Version 3.12)
* Power Supply for Yellowjacket Receiver
* Power Supply for Compaq IPAQ Cradle
* Hard Carrying / Storage Case
* Measure 2.4 GHz coverage for direct sequence (DSSS) WLANs (IF wideband 22 MHz) within the IEEE 802.11b standard
* Receive, filter and process DSSS studies all in Pocket PC
* Measures RSSI in true dBm with a calibrated receiver
* Measures Packet Error Rate; data rate percentage breakdowns Multipath and RSSI; narrow band & total channel power
* Complex Access Point / Station list analysis including WEP, Multipath, PER, Absolute Channel, Survey Sweep and SSID
* BANDS SUPPORTED ISM: 2.400-2.495 GHz
* RF SENSITIVITY (Wide Band): -20 to -90 dBm
* RSSI MEASUREMENT (Narrow Band): -30 to -90 dBm @ 343.75 kHz resolution bandwidth
* Tuning Increments: Tunes 11 USA channels & 3 international channels
* UL and FCC approved and certified
