18.1" swg 22" cc emco maier emcoturn 360 cnc lathe, sie
18.1" Swg 22" cc Emco Maier EMCOTURN 360 CNC LATHE, Sie

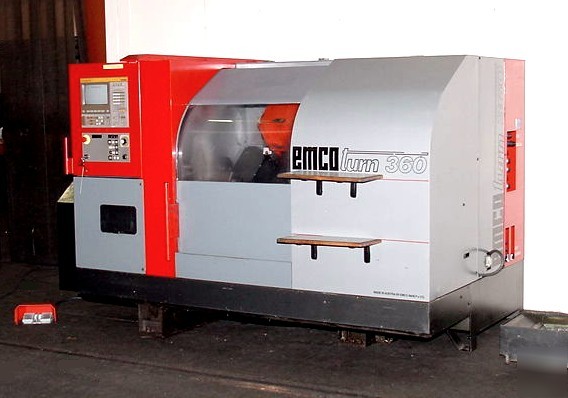

18.1" Swing 22" Centers Emco Maier EMCOTURN 360 CNC LATHE, Siemens810T,LiveTool,PartCatch,Tail.,Ch
EMCO MAIER CNC TURNING CENTER WITH LIVE TOOLING
SWING OVER BED.........................18.1"
SWING OVER CROSS SLIDE.................8.7"
Z AXIS TRAVEL..........................22.6"
X AXIS TRAVEL..........................8.9"
MAIN SPINDLE MOTOR.....................30 HP
MAX DIA OF WORKPIECE WITH CHUCK........8.7"
MAX DIA BAR FOR COLLET WORK............2.5"
SPINDLE BORE...........................2.9"
HOLE THRU DRAW TUBE....................2.6"
SPINDLE SPEEDS.........................0 TO 4,000 RPM
INDEXING OF SPINDLE (PROGRAMABLE HYDRAULIC INDEXING)... 3 DEGREES
TURRET..(6 STATIONS FOR LIVE TOOLS)....12 STATION BI-DIRECTIONAL
LIVE TOOLING MOTOR.....................10 HP
LIVE SPINDLE SPEEDS....................0 TO 4,500 RPM
OVERALL SIZE....170" X 65" X 73" TALL
* SIEMENS (GENERAL NUMERIC) 810-T/GAI CNC CONTROL WITH 9" SCREEN
* PROGRAMABLE TUG ALONG TAILSTOCK (MANUAL CLAMPING)
* MISC. VDI QUICK CHANGE TOOLING INCLUDING 4 LIVE TOOL HOLDERS
