E-instruments greenline 4000 gas analyzer eurotron

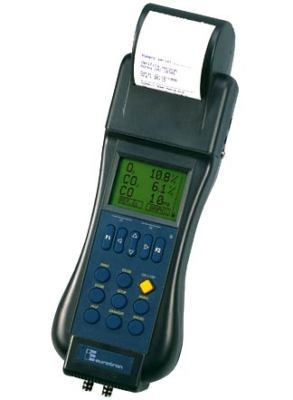

Up for sale a slightly used E-Instruments/Eurotron GreenLine 4000 Combustion Gas & Emissions Analyzer.

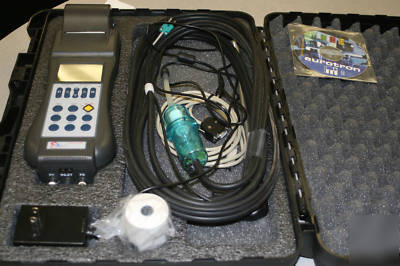

Comes as pictured with Case and CD. I will also Include Manual in PDF if needed.
Two internal electrochemical sensors read the Oxygen (O2) and carbonic monoxide (CO) gas concentration.
The gas temperature and air temperature are used in connection with the gas analysis to calculate the efficiency, excess air, and CO2 concentration.
A 10 gas parameters programmable table is used for calculations approved in accordance with DIN33962.
External sensors are available for ambient parameters measurement: ambient relative humidity and temperature (T+RH%), ambient CO, to check and evaluate gas network leakage and natural gas leakage detector.
GreenLine 4000 can install a forth electrochemical sensor to monitor pollution. In this way you can measure simultaneously and using a single unit, NO/NOx and SO2 gas concentration.
The instruments are completed with a pressure (draught) sensor, an internal printer, an internal memory for storing data and a RS232 serial interface for configuration and data transfer from and to a PC.
* CO dilution to extend the sensor range up to 10%
* Electrovalve for autozero quick start-up
* Draft measurement is possible using the internal pressure sensor and the special gas sample probe.
* The optional internal printer is impact type and the generated document is very legible and has a long time duration.
* The internal standard memory may store up to 250 complete gas analysis divided by Tag. A PCMCIA memory card adapter can be installed to extend the standard memory.
* more than 10 hours of operations with standard Li-Ion battery pack
* The UniGas has a standard USB serial port and the configuration PC software to configure the analyser.
