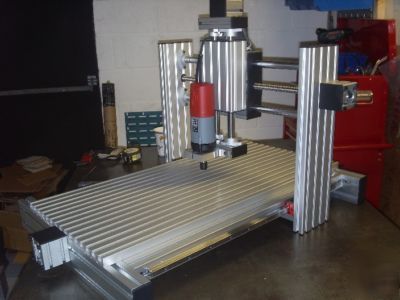

Manufactured by Marchant Dice Ltd (worldofcnc) New Desktop CNC Machine MDL-A3-BSX (Y15) Router Supplied as a kit of major components....
(ZERO BACKLASH BALLSCREWS, ALL 3 AXIS)
This machine is a serious work of engineering, top quality industrial components are used through out the build.....
Roughing: http:// /user/worldofcnc#play/all/uploads-all/1/Fx1Y7nVLTzA
Finishing: http:// /user/worldofcnc#play/all/uploads-all/0/MUpfb654wF8
Foot Print: 800x550mm (31 1/2" x 21 1/2")
Working area: XYZ Axis: 550mm x 320mm x 75mm
Translation - BALLSCREWS x pitch (1 revolution = X and Y axis 5mm, Z axis 4mm)
X Axis: 16x5 assembled with zero backlash Ballnuts
Y Axis: 16x5 assembled with zero backlash Ballnuts
Z Axis: 12x4 assembled with zero backlash Ballnuts

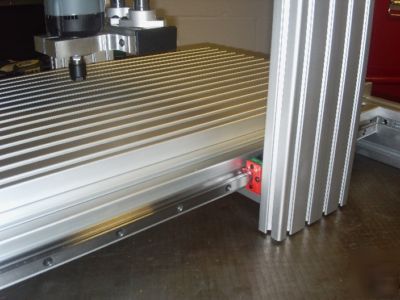

Guide Rails - Y Axis, 15mm profile rail
X and Z Axis 20mm Chrome Plated Precision Ground Shafting
Y Axis: x4pcs 15mm Hiwin Carriage.
X ans Z Axis: x4pcs Linear Bearing LM20UU ssembled into the housing
T-Nut Bed Plate: Solid section (weight 10Kg) 800x375x20mm
Couplings fitted to suit your stepper motors: Please advise " of your stepper motor spindle?
To complete the machine you require x3pcs Nema 23 motor, SBOX-3 controller + stepper motors and a Kress milling spindle. (Also available via our e-shop)
Technical Information, similar to: http:// /images/MDL-Machines-Router.pdf
More information please email Kevin: ****@marchantdice.com
