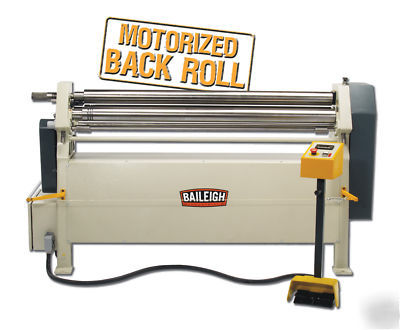

Baileigh pr-514 plate roll slip roll bending machine
Click here for capacities and specifications: http:// /benders/plateroll-514.php
The Baileigh's PR-514 is the perfect plate roll bender for small and medium rolling applications.
This sheet metal forming machine has a useful width of 5' and has a capacity of 14 gauge mild steel sheet metal.
The machine has a rugged frame that allows no deflection across the useful width, even at maximum capacity.
The rollers are induction hardened to allow years of useful life that also helps in eliminating any possible deflection. The rolls also have three wire grooves.
This plate roll bender has a 3-1/2 HP motor that has a direct gear drive system allowing for a sure transfer of power that reduces slippage.
This machine has power requirements of 220 volt, three phase, 60 hertz. The top roller has an outside diameter of 3-1/2" and with the right material and thickness can roll as tight as 1-1/2 times the top roll. Having a useful width of 5' is perfect when the fabrication project requires rolling 4'x8' sheets.
This size also allows for rolling cones or funnel shapes.
Bending capacities of 14GA aluminum and mild steel are easily accomplished, as well as up to 18GA stainless steel.
