Fluke 702 documenting process calibrator meter

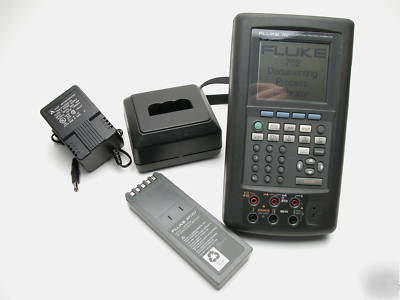

Fluke 702 Documenting Process Calibrator Meter used In Excellent Condition. Last Calibrated Aug 2009. InCludeds a Brand New Fresh Battery and Charger. $3995.00 New.
Model DetailsThe Fluke 702 Documenting Process Calibrator is a hand-held battery powered instrument that measures and sources electrical and physical parameters. The 702 measures AC volts, sources and measures DC voltage and current, Thermocouple, RTD, resistance, frequency, measures pressure with 14 different modules (ranging) from 0 to 10" water to 0 to 10,000 PSI. The 702 also has the capability to verify continuity with an audible beep and provide loop power of 24 or 28 V with a maximum current of 22 mA.
* Calibrate temperature, pressure, voltage, current, resistance, and frequency
* Simultaneously measure and source
* Automatically capture calibration results
* Document procedures and results to meet ISO 9000, EPA, FDA, OSHA and other requirements
* Measure/simulate eleven types of thermocouples and eight RTDs
* Store up to 8,000 readings in data logging mode
* Internal Battery Pack: NiCd, 7.2V, 1700 mAh
* Battery Life: Typically over eight hours
* Range (full scale): 110.000 mV dc - 300.00V dc; Vac, 20 Hz to 5 kHz; 30.00 mA dc - 110.00 mA dc; 11.000 ohms - 11.000 kohms; 1.00 Hz to 50.00 kHz
* Range (full scale): 110.000 mV; 1.10000V; 11.00000V; Source 22.000 mA;
* Simulate 22.000 mA; 11.000 ohms - 11.000 kohms; 2.00 Hz to 50 kHz
* Temperature, RTDs and Thermocouples: 10 ohms Cu(427); 100 ohms Pt3916); 100 ohms Pt(3926); 100 ohms (385); 200 ohms Pt(385); 500 ohms Pt(385); 1000 ohms Pt(385); 120 ohms Ni(672); E, N, J, L, K, T, U, B, R, S, C
* Data Log: measure V, mA, ohms, frequency, temperature, pressure
1 to 60 readings/min, 8000 readings max
* Ramp: source V, mA, ohms, frequency, temperature
* Loop Power: selectable, 24V or 28V; 22 mA max
