Industrial computer, rocky 3701,4 RS232 ports,usb,1 ssd
PICMG Socket-370 Base CPU card, FSB 133MHz

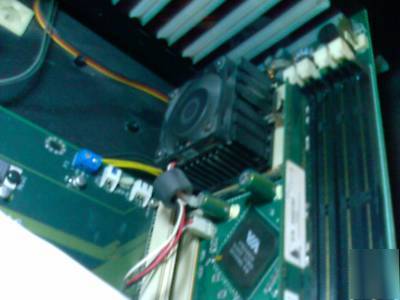

For Sale Rocky 3701 SBC Complete System in Rack Case. Below is a detailed specs for this motherboard, the most complete system board for testing: 4 RS-232 PORTS, 2 USB, 1 SSD. Guaranteed to be fully functional 7 day test and inspection up on receipt .
ROCKY-3701 PICMG Bus Socket-370 Base CPU CardROCKY-3701 PICMG Bus Socket-370 Base CPU Card
Welcome to the ROCKY-3701 Socket 370 Celeron
Pentium III ( FC-PGA ) with four RS-232C ports &
CompactFlash disk Single Board Computer. The ROCKY-3701
is a PICMG bus form factor board. It is equipped with high
Celeron up to 500MHz and Pentium III ( FCPGA
) 866MHz ( or above ) Processor and advanced high
performance multi-mode I/O, designed for the system
manufacturers, integrators, or VARs that want to provide all the
performance, reliability, and quality at a reasonable price.
This board has a built-in DiskOnChip (DOC) Flash Disk for
embedded application. The DOC Flash Disk is 100%
compatible to hard disk. User can use any DOS command
without any extra software utility. The DOC currently is available
Besides the DOC, this board also support CompactFlash disk,
We use IDE2 for CompactFlash disk , which is
An advanced high performance super AT I/O chip Winbond
W83977TF & W83877TF are used in the ROCKY-3701 board.
The on-chip UARTs are compatible with the NS16C550. The
parallel port and IDE interface are compatible with IBM PC/AT
ROCKY-3701 uses the advanced VIA Apollo Pro133 Chipset
which is 100% ISA/PCI compatible chipset with PCI 2.1
standard. In addition, this board provides four 168-pin sockets
for its on-board DRAM. The DIMM module is 3.3 V SDRAM and
CPU : Intel 66/100/133MHz FSB CPU , support Intel Celeron up to
500 MHz , Pentium III ( FC-PGA ) 866 MHz ( or Above ) Processor.
Bus : PICMG bus, meets PCI 2.1 standard
Chipset : VIA Apollo Pro133 & Winbond Super I/O.
RAM : Four 168-pin DIMM sockets support SDRAM and EDO RAM
Ultra DMA/66 (Enhanced PCI IDE Interface) : up to four PCI
Enhance IDE hard drives. The Ultra DMA/66 IDE can handle data
transfer up to 66MB/s. The best of all is that this new technology is
compatible with existing IDE specifications. So, there is no need to
Multi-I/O Chip : W83977TF & W83877TF, all I/O setup by BIOS
One EPP/ECP Parallel Port, Floppy Port
Floppy disk drive interface : two 2.88 MB, 1.44MB, 1.2MB, 720KB,

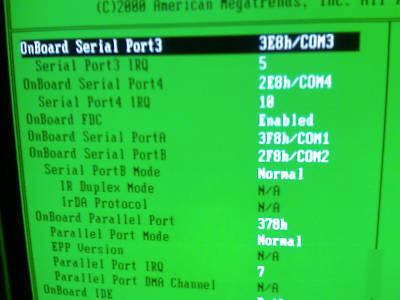

Four high speed Serial ports : NS16C550 compatible UARTs
Built-in LM78 Hardware Monitoring System to monitor power
supply voltage and fan speed status.
IrDA port : Support Serial Infrared(SIR) and Amplitude Shift
USB port : Support two USB ports for future expansion.
ISAPLUSTM : designed to enhance the ISA bus drive capability
Watch-dog timer : can be set by PROGRAM period. Reset or NMI
is generated when CPU does not periodically trigger the timer. Your
program uses hex 043(843) and 443 to control the watch-dog and
10X PCI , 2X ISA, 2x PICMG SLOTS BACKPLANE
(LEGAL XP ENGLISH VERSION INCLUDED)
RS232 MOUSE , Y TYPE PS2 MOUSE/KYBD
EQUIPMENT FOR PROFESSIONALS ONLY
THIS CARD IS VERY DIFFICULT TO FIND, CAN BE USED AS SPARE FOR YOUR PLANT, KEEP YOUR LINE RUNNING.
