Rothenberger 22A pipe threader w honda EH5000 generator

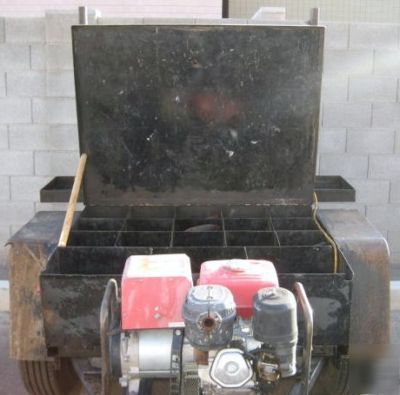

This listing is for a mobile / portable pipe threader system, with trailer and generator.
NOTE: I have approximately 20 more pictures of this equipment. Please email if you'd like me to send them to you.
* Model: 2000-22A (200022A)
* Input Power: 115V / 20A / 50/60Hz
* Model: EG-5000 (EG5000)
* Serial #: FA7-4132699
* Listed Power Information: 120/240VAC / 60Hz / 4.5kVA/5kVA / Single Phase
* List Price: Approximately $1900
* Make: Altwood Mobile Products
* Max Gross Weight: 5000 lbs
* Max Tongue Load: 700 lbs
* Dimensions: 112" long x 68" wide
* Ball Hitch Size: 2" Diameter
* Includes all/only items pictured. To me, the threader looks 'complete'. But please see the pictures and confirm that everything you need is included.
Here is some information from the manufacturer regarding the threader. Please note that these are general specs from the manual. The equipment for sale is configured exactly as descibed above, as pictured.
* Wheel type with sliding roller block
* Cutting capacity: Pipe 1/8" thru 2"
* Adjustable 5-flute cone-type, right-hand
* Reaming Capacity: Pipe 1/8" thru 2"
* High-speed automatic chuck with 8 replaceable and reversible jaws, 4 in front and 4 in rear.
* Gerotor-type, reversible on right and left machines
* Single-phase machines: heavy-duty, drum-type, release-off-thread
* Three-phase machines: heavy-duty, rotary-type, release-off-thread 1, thread 2
* Heavy-duty, oil and watertight, with safety guard, ON-OFF
* Switch, Directional (right & left machine only) rocker-type, right-off-left
* a 115V AC/DC, 50-60 Hz, 20 amps, 1/2 HP, 6-brush universal type
* b 230V AC/DC, 50-60 Hz, 10 amps, 1/2 HP, 6-brush universal type
* Three-Phase (optional, available at extra cost)
* a 230V AC, 50 or 60 Hz, 5.8/4.7 amps, 2 / 11/2 HP, 3400 / 1700 rpm, two-speed induction-type
* b 380 / 440V, AC, 50 or 60 Hz, 6.1 / 3.9 amps, 2.7/2 HP, 2800/1400 rpm, two-speed induction-type
* Standard or right & left single-phase machine:
* 72 rpm with standard gearbox
* 54 rpm with optional low speed gearbox
* 100 rpm with optional high speed gearbox
* Right & left three-phase machine:
* 60 rpm (thread 1), 120 rpm (thread 2)
* Single-phase machines: 84 dB max. ( A scale, slow response)
* Three-phase machines: 81 dB max. ( A scale, slow response)
* Standard or right & left single-phase machine;
* Helical gear construction with 13.1:1 reduction
* (optional low speed gearbox has 16.7:1 and high speed gearbox has 9.6:1 reduction.)
* Helical gear construction with 3.84:1 reduction
* Single-phase machines: 235 lb.
* Three-phase machines: 265 lb.
For further information, please visit Rothenberger's product online manual at http:// /fileadmin/fm_usa/Operating_Manuals/22A___Collins_Classic_OM_Eng_0406.pdf
Here is some information from the manufacturer, regarding the generator...
The Honda Economy EG5000 offers the same features as the Honda Economy EG3500 but with a bigger 11 HP overhead valve engine that gives the generator a max wattage of 5000 and a rated wattage of 4500. Similar features include the 120/240V selector switch and automatic voltage regulators provide stable power for different power needs. This is a good generator for home and jobsites.
* Wattage Rating: 5000 Watts
* Sound Rating: 76 dB at 7 meters with rated load
* AZ to NV/UT/NM/CO - $400
