Makino twin spindle vmc

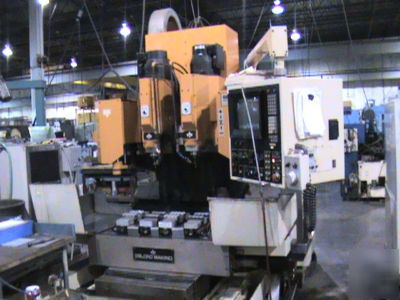

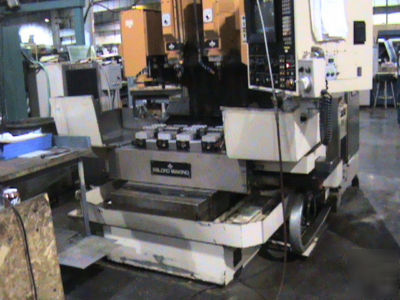

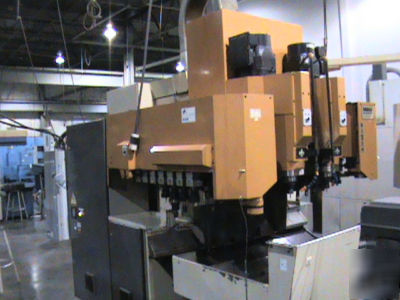

VMC LeBlond Makino twin spindle

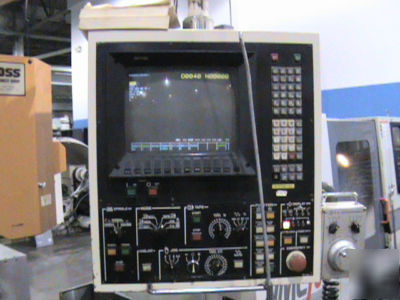

This machine has a CAT 40 taper, 10,000 RPM spindle, 11M Fanuc control and is 4th Axis ready!!
Spindle center to column front face: 24" / 600mm
Spindle end face to table top face: 6" - 22" or 150-550mm
Spindle speeds: 100 - 10,000 RPM

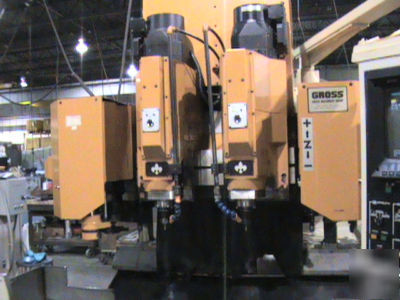

Spindle output: 4.5/7.5kw x 2 units
Spindle speed changing: S 4-digit direction
Movable center type: Adjustable in 100mm increments (min. 200 to max of 500mm)
Fixed center type: Arbitrary position between 360-550mm (DS type)

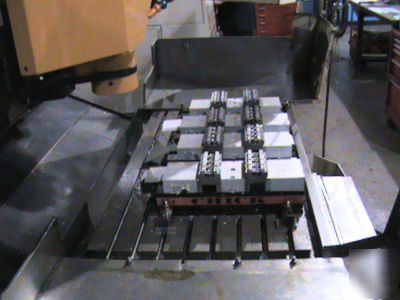

T-Slots in table top: 14H8 (9/16"), 63mm pitch, 8 slots
Rapid feed: X, Y axes: 12000mm/min, Z axis: 10000 mm/min

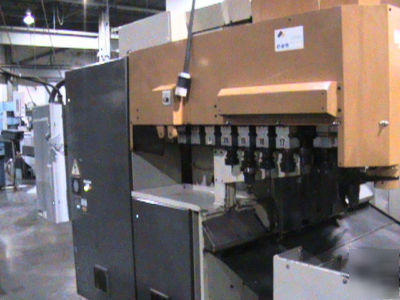

Tool magazine capacity 20 tools x 2 magazines (30 x 2)
Tool selection method: Fixed address, random
Max. tool size: 95mm dia. x 290mm
