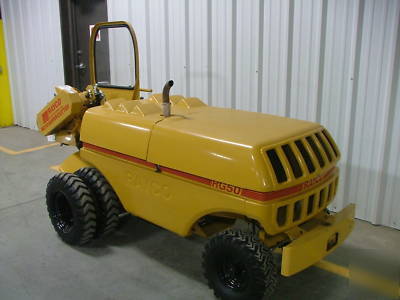

> Rayco RG50 stump cutter,47 hp job ready, only 430 hr
Rayco RG50 stump cutter,47 hp job ready, only 430 hr
Rayco RG50 47 HP Duetz Diesel, Self Propelled,2 WD, 67" Cutting width, fits through a standard 36" gate, Fully Inspected & Tested with New Teeth, Only used 430 Hours
* Hydraulic wheel motors at each rear wheel for self propell
* Swing pivot bearing: 1.25" hardened steel bushings
* Crucial cylinder pivot points 1.25" hardened steel bushings
* Operator control console:mounted on swing away are, with window, full length rubber shield, and fully covered valve bank
* Warning lights: Engine oil pressure, engine oil temp, hyd oil temp, charging system, hyd oil filter
* Brakes:rear spring applied hyd release
* Engine:Deutz Diesel F3M2011, 3 cylinder, 47 HP, Overhead valve, spin on oil filter, fuel tank 9 gallons, 12 volt, fuel gauge
* Hydrostatic cutter system:cutter pump varaiable displacement axial piston, cutter motor fixed displacement axial piston, cutter pump displacement cable controlled with neutral start and operator console interlocks, filter in tank suction filter, system pressure relief 5800 psi
* Hydraulic system:Wheel drive system, gear wheel drive pump, wheel drive motors axial 2 speed piston motors, control valve single spool monoblock fingertip control, spring centering w/neutral sensor creep gate,speed control detent rocker on dash, system pressure relief 3500 psi, cylinder pump gear type, control valve 3 spool monoblock fingertip control, 2500 psi, filter spin on services both gear pumps, lift and swing cylinders 2.5" bore x 8" stroke, 1 1/8" rod, steer axle cylinder 2" bore x 4" stroke, 3/4" rod, oil type shell tellus T46, hyd reservior 8 gallons
* Cutting Wheel:20", 1.5" thickness, cutting wheel bearings 1.75", speed 1100 rpm, drive belt gates polychain GR low maintenance, belt guards steel one piece
* Cutting range:15" below ground level, 30" above ground level, cutting width 67"
