New laminar flow air cabinet, clean bench, fume hood
(Clean Bench, Fume Cabinet, Laminar flow Cabinet)
Widely used for providing sterile condition for Plant tissue culturing, Mushroom propagating, Orchid propagating, Microbiology lab, Electronic industry, Pharmaceutical industry, etc.
Designed so as to meet the requirements of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100. Whole cabinet made of Cold Rolled steel powder coated. The work table is made of thick Stainless-steel (SUS304 T=1.0mm). Extra charge is applied for full SUS304 body.
The unit is fitted with pre-filter and HEPA Filter. Air is drawn through pre-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron and larger.
The sides of the cabin are made of 8mm transparent poly-glass. Comes with a UV-C germicidal lamp to sterilize the shell and contents when not in use.
Its shape and colour make the workaround roomy and bright. Two men working area.
Different sizes with different prices are available.

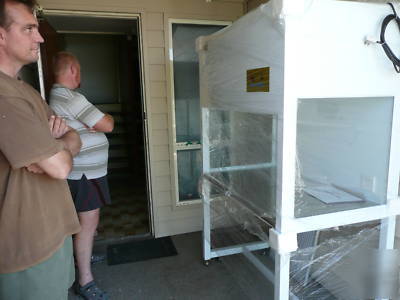

The first picture is a cabinet with cover, second picture is a full Stainless-steel (SUS304 T=1.0mm) cabinet. third picture is a normal Cold Rolled steel powder coated. Fourth picture is from customized full Stainless-steel cabinets with one extra glass side. All the pictures here are from vertical Air Cabinets. Horizontal cabins are also available (visit my other items). The last picture is the CE license.
Cabinet: Cold rolled steel with powder coated (T=1.0mm)
HEPA filter efficiency EN1822: 99.99% @0.3um
Stainless-steel Clean Bench VC-3
Cabinet Material: Entirely SUS304 (T=1.0mm)
Since 1994, Owner of 6 patents
One year full warranty. All the spare parts will be sent for free
(size, UV lamp, cover, extra glass side, fan, filter, etc)
Delivery in Australia: Free pick up from port. $110 within the metropolitan area. For other deliveries please contact us.
