v-block (1) w/clamp xlnt toolmaker a-6 hardened wow

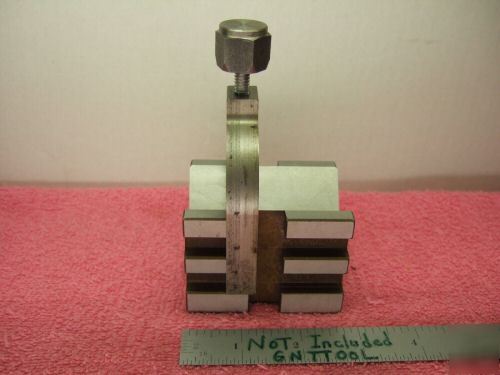

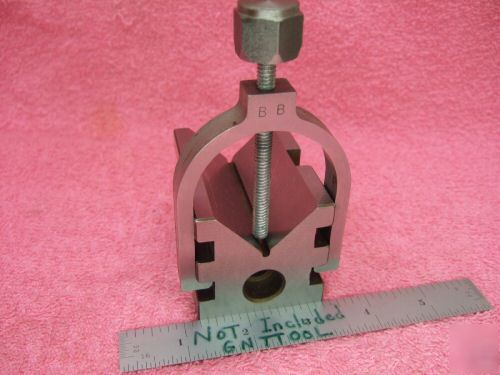

THIS IS AN AMERICAN TOOLMAKER MADE V-BLOCK. V-BLOCK IS HARDENED A-6 TOOL STEEL AND MEASURES 2.049" WIDE X 2.010" TALL AND IS 2.773" LONG AND COMES WITH 1 CLAMP AS SHOWN IN PICS. VEE WIDTH IS APPX. 1-1/2" AND BLOCK HAS(1) DRILLED AND COUNTER-BORED HOLES THROUGH THE LENGTH THAT ARE 13/32" x 5/8"C-BORES ON EACH END OF BLOCK SO IT CAN BE BOLTED AS NEEDED. ONE PIECE DESIGN WITH SLOTTED SIDES AS SHOWN IN PICS FOR CLAMP AND TO CLAMP DOWN AS NEEDED VERY HANDY!!! NOT A MARK ON THIS FRESH GROUND V-BLOCK THAT IS VERY HANDY SIZED. VBLOCK WAS GROUND AND PRECISION CHAMFERED USING HERMANN SCHMIDT SQUARING BLOCK AND HERMANN SCHMIDT MAGNETIC SINE CHUCK AND IS VERY ACCURATE.
