Electromedia 100C ceiling mounted air cleaner
A modern contemporary design that easily blends into your business environment highlights our Ceiling Unit. The soft, white hue blends with ceiling material to create an unobtrusive and efficient air cleaning system.
That's just one of the many outstanding features that make our unit the obvious choice. Patented ElectroMedia technology. Custom Designed High Volume Blower and Highly Effective Odor-Removal System form an unbeatable team of product features.
The 100c moves the air at 1000cfm and either recessed or surface mounted, our systems handle a wide range of air cleaning requirements easily and effectively.
A patented new technology, ElecroMedia represents the first major break-through in air cleaning in over fifty years. Proven 99.7% effective with the tough DoP MIL 282 Testing Standard, ElectroMedia has achieved the highest efficiency rating in the world. Research proves that the ElectroMedia air cleaner collects particles 3/10 of a micron and smaller.

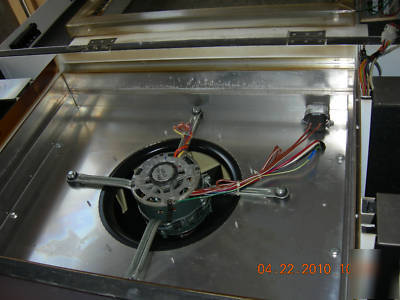

Without the ability to move the air, even the best air cleaner in the world would be ineffective. Our custom designed blower is strong on three important fronts.
First, our air distribution system is able to deliver more cubic feet of clean air at static pressure levels two to three times greater than required. Next, our Coanda airflow design maximizes air distribution to all corners of the room. Finally, even with all this capability it's still incredibly quiet.
The key to odor and gas control is the amount of absorption material used. We use at least 1 lb. per 100cfm. Anything less is ineffective and requires excessive replacement, increasing operating costs.
ElectroMedia technology is setting the standard by which all commercial air cleaners are judged. Designed to solve indoor air quality problems, our Ceiling Unit offers a very quiet, easy-to-maintain, cost effective solution to your indoor air quality needs. Call today and ask for "ElectroMedia."
Dimensions15.4in x 23.5in x 48in 391mm x 597mm x 1219mm Weight85 lbs Power consumption453 watts Input Power4.7 amps @ 115 vac FinishPowder Coated Aluminum for
lasting durability with color molded ABS Air Capacity1738 m^3 / hr

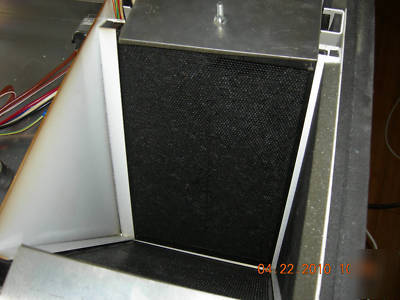

4.0 ft^2 (3715 cm^2) Prefilter Holding Capacity675 grams Prefilter Arrestence89% Main Filter
Filtration Technology Main Filter Efficiency99.7% @ .3 Micron
Motor3 speeds, thermally protected,
PSC 1/4 hp Blower18" Backward inclined direct
drive Gas Filtration13 lbs carbon, 3/4" bed Sound Pressure Level57-63 dBA @ 1 meter
It is missing switch control because it was installed to the wall and we left it at the original location without noticing it was not on the unit, replacement cost is $10.00-20.00.
Also I'm sure you need to change the filters
