Edwards, apgx-h active linear convection vacuum gauge

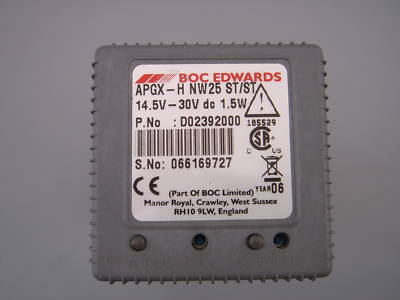

Edwards, APGX-H Active Linear Convection Vacuum Gauge
Product Description: APGX-H NW25 St/St
Technical Specifications: Features
1333 to 3x10-4 mbar (1000 to 2.3x10-4 Torr).
Use of convection technology
Ensures consistent measuring accuracy and repeatability
Log linear range 2.5 to 9.215 V (1 V/decade)
Compatible with Edwards (formerly known as BOC Edwards) AGC, AGD and TIC controllers
Calibration data held in tube
Can be mounted in any orientation
Unlike many convection type gauges, the APG-H maintains accuracy in any orientation across the whole measuring range, making for easier installation in restricted areas
The APG-H is the smallest high pressure gauge offered by Edwards (formerly known as BOC Edwards) and is significantly smaller than leading competitor designs
LED's indicate set point and gauge status at the gauge head
