3½ dc +/- 500A blue lcd digital amp panel meter + shunt

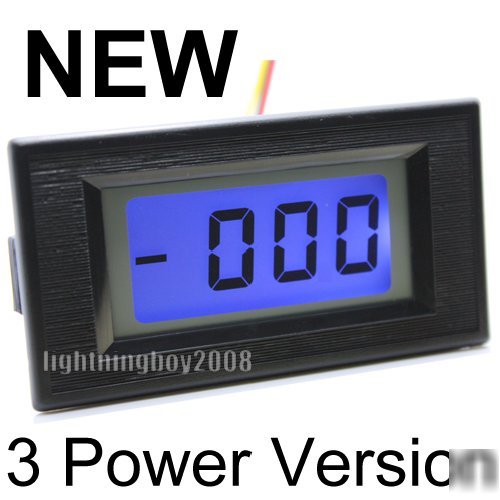

3 DC +/- 500A Blue LCD Digital AMP Panel Meter + Shunt
Type : 3-1/2 Digital LCD (Blue)
(I also supply DC 5V or AC/DC 25V~250V. If you need DC 5V or AC/DC 25V~250V, please confirm with us by e-mail!)
Measuring Range : 0 ~ +/-500A
Dimensions : 79mm 43mm 32mm
* Panel Cutout Size : 71mm 39.5mm
1 X DC 500A LCD Digital AMP Panel Meter
1 X 500A 75mV Current Shunt Resistor
Q : Can it be powered from the same source being measured? How to wiring?
A : Yes! Please review the wiring diagram of this meter.
Q : What`s the 3 1/2 part mean?
A : 3 1 / 2, 3 and a half means the meter has 3 digit can display a digital control 0 ~ 9. and 1 digit can only display a maximum digit is 0 and 1. If the highest digit is 1, the latter digit is 999, then that is 1999, equivalent to about 2000.
Q : The power supply version can`t match my need, do you have other power supply version?
A : Yes! We have three power supply version for you choose, they are DC5V, DC6~24V, AC/DC25~250V. please confirm with us by e-mail!
Q : I will use a small 9V battery and want long operation, This current is high for my battery use due to backlight. Can the backlight be disconnected by removing resistors?
A : We have a version that it have a backlight switch, you can trun off the backlight by the switch. The current will be reduced when the backlight being turn off. It will have a Low power consumption! If you need "backlight switch version", please confirm with us by e-mail!
Q : If all amp meter must match with current shunt resistor to measure and monitors the current?
A : Amp panel meter must match with current shunt resistor to measure and monitor the curent when the curent greater than or equal to 10 amps current.
