> 30" w 0.15" strk rowe C3-30 press feed, uncoiler, strai
30" w 0.15" strk rowe C3-30 press feed, uncoiler, strai
30" W 0.15" Strk Rowe C3-30 PRESS FEED, UNCOILER, STRAI

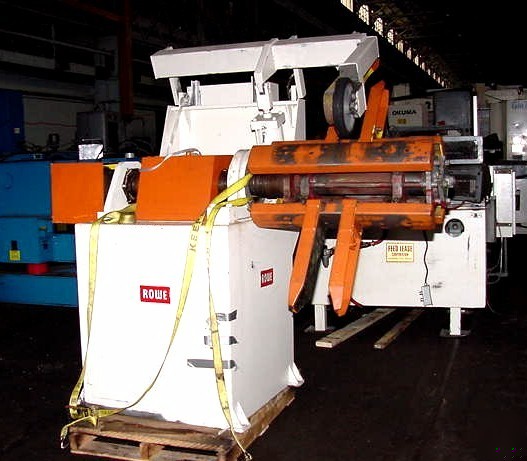

30" Width 0.15" Stroke Rowe C3-30 PRESS FEED, UNCOILER, STRAIGHTENER & AIR FEEDER
10,000 LB. ROWE NON-MOTORIZED UNCOILER
MODEL 10030-DSJ NEW 1981 S/N 24468
CAPACITY ................................... 10,000 LBS.
MAXIMUM COIL WIDTH ......................... 30"
MAXIMUM COIL O.D. .......................... 60"
MIN./MAX. I.D. ............................. 15-3/4"-20-1/4"
30" X 36" FEED LEASE PRESS FEED
MODEL FL-1-3/4-30X36 S/N 2344 NEW 1981
WIDTH ........................................... 30"
STROKE .......(adjustable)....................... 36"
THICKNESS ....(w/straightener)................... .090
THICKNESS ....(w/o straightener)................. .120"
STROKES PER MINUTE .............................. 25 @ 36"
.(SEE QUOTES 141299, 141297 & 141296 FOR
MORE PICTURES OF THESE MACHINES AND
