Sse NF96XI-1 adjustable rf notch filter, 80 - 190MHZ
Please Note: Post Office Strike!!

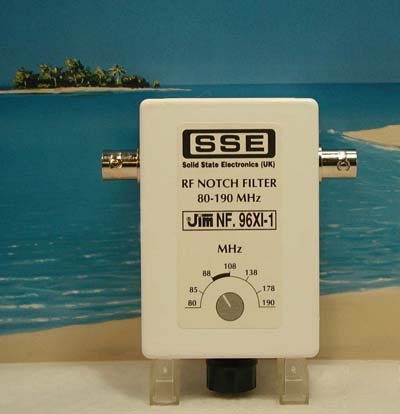

SSE NF96XI-1 Adjustable RF Notch Filter, 80 - 190MHz
For Pocket - Mobile, Base Scanner-Receivers, etc.
USA: 5.50 Do you hear Paging Tones, Voices, Music, etc. on the same frequency that you are listening to..? If so, you should use the SSE NF96X1-1 Filter to help you eliminate them!
SSE NF.96XI-1 MINIMUM REQUIREMENTS
1. The NF.96XI-1 Filter offers an adjustable notch frequency between 80 - 190MHz. A minimum of -40 db (Volts Loss x 0.01) attenuation is available over the range of 88 - 108MHz. i.e. The FM Broadcast Band 11.
2. The NF.96XI-1 allows you to use your wide band receive up to approximately 2000MHz. A great deal of attention has been given into achieving a minimum of insertion loss (ISL) through this filter. i.e. A minimum receiver sensitivity loss! Less than <1 db (Volts Loss x 0.089 or 11%). THIS IS ALLOWS THE
NF.96XI-1 TO BE LEFT PERMANENTLY IN LINE!
3. The NF.96XI-1 also provides a static/noise discharge path to ground and also functions as a high pass filter (HPF), thereby reducing interference from strong short wave stations. The NF.96I-1 offers -60db (Volts x 0.51 or 50%) attenuation at 20MHz falling to around -60 db (Volts x 0.001) at 1MHz.
The 96X1-1 is made in a high quality powder coated zinc box, using Professional BNC Socket. Very high rejection of all HF Short Wave Bands is obtained.
A BNC-BNC 50 OHM Patch Lead is supplied, together with full instructions.
-60dB Attenuation Below 1MHz
Receive Range Approx: 2000MHz
