Okuma lu-300M 5-axis cnc turning center with live milli
Okuma LU-300M 5-Axis CNC Turning Center with Live Milling
Swing Over Bed ........................ 20.87"
Swing Over Saddle ..................... 16.14"
Max. Turning Dia., Upper Turret ....... 14.57"
Max. Turning Dia., Lower Turret ....... 7.08"
Max. Turning Length ................... 23.62"
Spindle Nose .......................... A2-6"
Spindle Speeds, Main Spindle .......... 45-5000 RPM
Spindle Motor ......................... 20 HP / 30 HP
X-Axis Travel, Upper Turret ........... 10.23"
X-Axis Travel, Lower Turret ........... 5.51"
Z-Axis Travel, Upper Turret ........... 25.20"
Z-Axis Travel, Lower Turret ........... 24.21"
C-Axis Indexing ....................... 0.001 Degree
Rapid Traverse Rate, XA, XB ........... 787 IPM
Rapid Traverse Rate, ZA, ZB ........... 984 IPM
Rapid Traverse Rate, C-Axis ........... 200 RPM
Max. Feed Rate ........................ 39.37 IPM
Rotary Tool Speed Range ............... 45-4500 RPM
Rotary Tool Drive Motor ............... 7 HP
Tailstock Taper ....................... MT #5
Tailstock Stroke ...................... 4.72"
Machine Dimensions .................... 119" x 84"
Machine Height ........................ 81"
Approx. Machine Weight ................ 16,050 lbs.
OSP-E100L 5-Axis CNC with CX Contouring

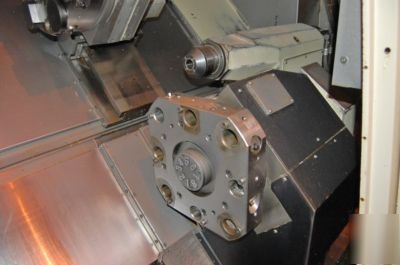

12 + 8 Position Upper & Lower Turrets
Just Purchased From CNC Machining Facility
