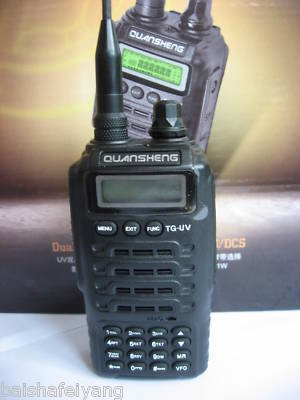

Quansheng tg-uv dual band radio 136-174/400-470MHZ
Key Specifications/Special Features:
FM Radio : 88-108MHz (only receiver)
RX :136-173.995MHz / 350-389.995MHz / 400-469.995MHz / 470-519.995MHz
TX :136-173.995MHZ / 400-469.995MHZ
PC programmed or keypad programmed
Power output: High 4w Medium 2w Low 1w
Modulation Limiting : Wide <5KHz Narrow <2.5KHz
Modulation Mode: 16 F3E 11K F3E
CTCSS/DCS Frequency Deviation :0.75KHz 50Hz 0.37KHz 30Hz
RF Sensitivity: -122dBm(12dB SINAD)
Modulation Receiver Bandwith: 5KHz
Spurious response rejection: 65db
1x TG-UV(VHF 136-174Mhz and UHF 400-470MHZ)
1x 7.4V 1500mah Li-ion Battery Pack
1x Desktop Charger ( 100V ~ 240V ) + PSU (2pin USA or 3pinUK or 2pin EURO)
