Pro shot AS2 magnum slope grade laser apache vertex pkg
AUTHORIZED DEALER: BE SAFE, NOT SORRY!
AS2 Magnum With Compound Slope Adapter
Longer Range, steep slope, highest accuracy!
The AS2 Magnum Pro Shot is designed for grading and pipeline contractors working on large commercial or municipal sites. It provides greater slope capability, accuracy, and range than our AS2 laser. Compatible with most machine control receivers. Electronic servo leveling means all you do is dial in the desired slope, turn the unit on, and watch it drive to level.
Range: 3300 foot diameter (1000m) with R8 laser receiver
Accuracy: 10 Arc Seconds (.060 inch per 100 feet, 1.6mm per 30m)
Grade Capability: 0-25%, .01% increments
Compound Grade Capability: With low cost optional kit (S1).
Height Alert: Prevents errors if laser is disturbed
Rotating Beam: 650-670nm class IIIa
Rotation speed: 600, 900, 1200 rpm
Power: 90 Hours NiMH Rechargeable batteries - 100 hours on 4C alkaline batteries
Environment: Water and dust resistant
Warranty: 3 Year Warranty.
mfg. by Apache - a Trimble/Spectra Precision Company
Fine: +/- 0.8mm, Std: +/- 1.6mm, Coarse: +/-3.2mm
Power supply : 2 x AA batteries
Speaker volume : off, low, high
Displays : front & rear height
Reception angle : 90 degrees
Auto shut : off after 30 min.
Elevation displays : 5 channel display
Warranty: 3 Years (2 Years on R8 receiver)

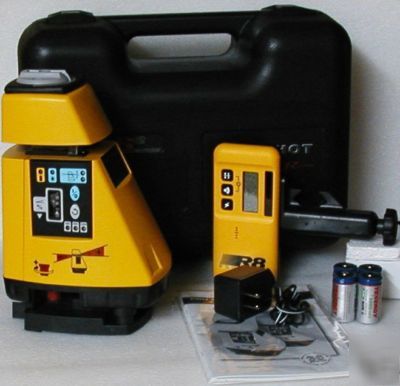

Laser, R8 Receiver with Rod Clamp, NiMH batteries with charger & Case
