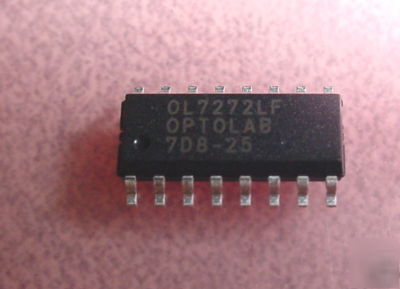

OL7272 industrial 30V 4 channel line driver bei dynapar
* Industrial Sensor Interfacing
* Industrial Encoder Interfacing
* Industrial Controllers and PLCs
* Microprocessor applications requiring high voltage interfaces
* Capable of translating 5 V logic to 12, 15 or 24 V differential line driver
* Voltage range of 4.5 to 36 V
* Pinout is compatible with industry standard 26LS31/26C31 driver
* Short Circuit proof tri-state outputs drive up to 120 mA source/sink
* Operating frequency up to 4 MHz
* Dynamic peak current up to 1.5 Amp
* High impedance TTL compatible buffered inputs with hysteresis
* Outputs RS-422 compatible when operated with a 5 V supply
* Direct replacement for many industrial sensor drivers, including Encoder Products, Dynapar and BEI
Use this link for a full data sheet on the OL7272:
http:// /pdf/OL7272.pdf
