Lot of 5 aurora cg-8 rod end left hand female thread

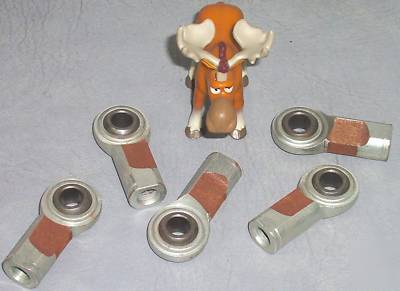

One Lot of 5 Aurora CG-8 Rod End Left Hand Female Thread.
Ball Bore .5000inches, Ball width .625inches, Head width .453inches, Base to center 2.125inches, Head diameter 1.312inches, Shank diameter .875inches, Wrench flat width .750inches, Ball diameter .937inches, Thread length 1.062inches, Thread size -20, Thread class UNF-2B, A-Misalignment Angle Clevis Mounted- 20 degrees, Ultimate Radial Static Load Capacity- 9096lbs
Item is new,has some surface rust on body.
