> 24 hp, 80-gallon honda gas drive air compressor

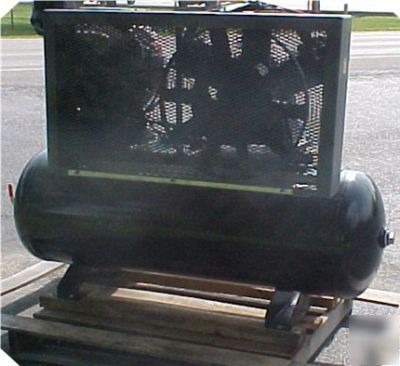

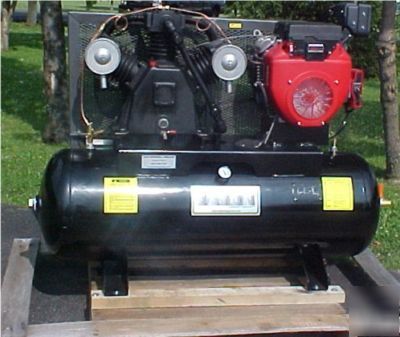

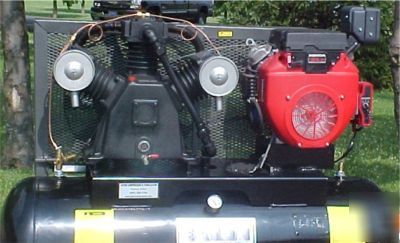

24 hp, 80-gallon honda gas drive air compressor
* Unit has a 5-year Warranty covered by us (the factory) and a 2-year warranty is on the Honda Engine
* The dimensions of this unit are 70" L x 25" D x 50" H
* Unit CFM is 49 SCFM Free Air @ 175 PSI, 53 CFM @ 100 PSI
* 3 Cylinder, 2-stage, 100% Cast Iron Construction Pump - Maximum PSI 190
* All Steel Connecting Rods w/replaceable insert bearings-NOT Aluminum
* Disc Valves-easy removing and maintenancing-will last up to 5 times longer than reed valves
* Large Steel Crankshaft with large roller bearings for good support and crank stability
* This pump is equipped with head unloaders. This makes for no load on the pump and no load on the electric starter on the Honda engine for easy starting your unit.
* 3 Cylinder Pump Design for maximum cooling - 360 Degrees
* Low Pump RPM - 890 for extended pump life
* Large Fan built into flywheel for maximum air flow for cooling pump
* Raised Mounting Platform under compressor pump for better crank case sump cooling
* Large Cooling Fins between stages for better cooling from 1st stage to 2nd stage
* Large Site Glass for quick and easy maintenancing and checking oil level
* Large Automotive Style Filters with built-in silencers and all metal canisters-NOT plastic
* 24 HP Honda Motor with electric start, pressure lubricated engine with spin-on oil filter, V-Twin Design
* Engine has built-in key switch, alternator/voltage regulator. Will charge its own battery
* Engine is equipped with an external oil cooler-this helps to cool the crankcase engine oil.
* Engine has overhead valve design-VERY dependable
* Large exhaust muffler for quieter operation
* Engine stand under engine-this makes for a smooth almost non-vibrating machine
* Engine does not come with fuel tank. You must hook it to your truck tank or external fuel tank
* Does not come with battery or cables. Battery cables must be hooked to the engine solenoid
* Engine comes with engine idle down. When unit comes up to pressure, this device will idle the engine when no load is needed for better fuel economy
* All steel belt guard-custom built-HEAVY-duty, OSHA approved
* 3/4" Ball Valve Air Outlet
* Ball Valve Crankcase Oil Drain for quick, no messy maintenance
* 1/4" Ball Valve tank drain for draining condensated water.
