> Capacheck digital plus capacitor analyzer tester
Capacheck digital plus capacitor analyzer tester

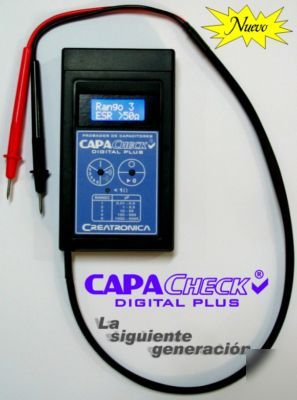

Probador de capacitores en circuito CAPACheck Digital Plus (digital ESR meter)
La siguiente generaci n del famoso medidor de ESR de capacitores ha llegado.
El nuevo modelo de CAPACheck se llama Digital Plus, y en l est n reunidas las caracter sticas m s deseadas por el t cnico reparador a lo largo de los a os de experiencia de su antecesor de aguja, super ndolas con la utilizaci n de la tecnolog a digital microcontrolada.
se logra mayor resoluci n con capacitores grandes, mayor rango de medida con capacitores peque os, y funciones adicionales que hacen m s c modo el trabajo...
* Rango de medida de ESR, de 0.00 a 50.00 Ohms
* Resoluci n de ESR tan baja como 0.01 Ohms
* Rango de captura: de 0.01 F (10 nF) hasta 9999 F (~ 10 mF)
* Mide tanto capacitores sueltos como en circuito, sin que le afecten componentes semiconductores conectados en paralelo
* Elabora un diagn stico del estado del capacitor y lo califica tanto en pantalla como con sonidos diferenciados
* Discierne entre un capacitor y un resistor, evitando falsas medidas
* Mide resistores de bajo valor y emite sonido, siendo til como medidor de continuidad
* Apagado autom tico y manual
* Alimentaci n dual: a bater a de 9V, o fuente externa de 12V
* Muestra el voltaje de la bater a o fuente que lo alimenta
* Alerta en pantalla por medir capacitor cargado
* Modo de Servicio accesible al usuario
Capacitors tester circuit CAPACheck Digital Plus (ESR digital meter)
The next generation of the famous capacitor ESR meter has arrived.
The new model CAPACheck is called Digital Plus, And in it are grouped the features most desired by the repairman over the years of experience of its predecessor needle, emerging with the use of digital microcontroller.
higher resolution is achieved with large capacitors, increased measurement range with small capacitors, and additional features that make work easier ...
* ESR measurement range, from 0.00 to 50.00 Ohms
* Resolution of ESR as low as 0.01 Ohms
* Capture Range: 0.01 uF (10 nF) to 9999 uF (~ 10 mF)
* Separate and measure both capacitors in circuit, without affecting him semiconductor components connected in parallel
* Make a diagnosis of the capacitor and find it both on screen and with different sounds
* Discern between a capacitor and a resistor, avoiding false measures
* Measure low-value resistors and output sound, being useful as continuity meter
* Automatic and manual shutdown
* Dual power: 9V battery, or external 12V
* Displays the battery voltage or source that feeds it
* Alert screen measuring charged capacitor
* Service Mode user accessible
One (1) - Model Digital Plus - Capacitor Tester
