Bohn heatcraft 30 ton cooler blv & 2 evaporators bha
1 CONDENSOR AND 2 EVAPORATORS INCLUDED
Bohn HEATCRAFT REFRIGERATION PRODUCTS LLC
CONDENSER ROOF TOP OR OUTSIDE 30 TON UNIT NEW COMPRESSOR Installed in 2009
System removed due to conversion to office space very well maintained.

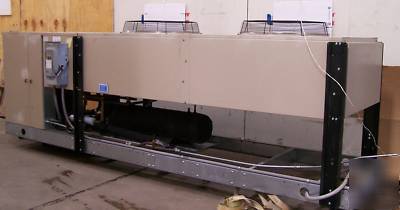

BOHN HEATCRAFT 30 TON REFRIGERATION COOLER BLV BHA EVAP
PN 87021102 Model BLV600H2D SN T04D00221 460VAC 60HZ 3Phase 186,800 BTU/H R22
PERFORMANCE DATA Click Here to see the factory PDF>> http:// /resources/prodbullet/BN-VADTB.pdf
Evaporator coils 2 each BOHN HEATCRAFT REFRIGERATION PRODUCTS LLC 75,000BTU/H ea
Click here to see the factory PDF Sheet >> http:// /resources/prodbullet/430-2.pdf
Both are MODEL NUMBER BHA750DA SN D03L08595 & D03L04483
THIS SYSTEM WAS JUST REMOVED FROM 10,000 Sq. Ft. COLD STORAGE WAREHOUSE KEEPING IT DRY AND AT 60 Degrees SYSTEM IS IN FULL OPERATIONAL CONDITION WILL WORK AS COOLER WITH THESE EVAPORATORS BUT NOT FREEZER THERE ARE NO DEFROST COILS ON THEM SO JUST COOL A WAREHOUSE OR BRING 5,000 sq. ft. into the refrigerated zone.
Mill finish aluminum provides an attractive design and structurally sound cabinet
Thermoflex ( with five-year limited warranty) is innovative, eliminates leaks, and reduces risk of
850 rpm motors are quiet and reliable
Liquid line solenoid wiring harness for faster installation
Suction Schrader fitting for easier suction temperature measurement
Hinged drain pan and access panels for easy servicing
Captive fasteners on access panels for easy servicing no fumbling with loose bolts and nuts
Adjustable defrost control can be customized per application
Long air throw is ideal for large warehouse and industrial applications
Standardized terminal board for easier field wiring
