> AD8306, precision logarithmic amplifier, amp, qty 2
AD8306, precision logarithmic amplifier, amp, qty 2
Precision Logarithmic Amplifier

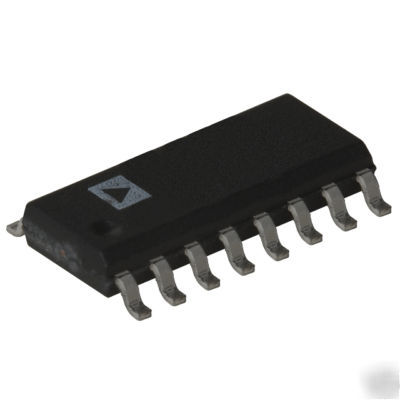

AD8306ARZ, 5 - 400 MHz, 100 dB High Precision Limiting Logarithmic Amplifier , 16 Pin SOIC, Lead-Free, Quantity 2, Analog Devices.
The AD8306 is a complete IF limiting amplifier, providing both an accurate logarithmic (decibel) measure of the input signal (the RSSI function) over a dynamic range of 100 dB, and a programmable limiter output, useful from 5 MHz to 400 MHz.
* Complete, Fully Calibrated Log-Limiting IF Amplifier
* 100 dB Dynamic Range: 91 dBV to +9 dBV
* Stable RSSI Scaling Over Temperature and Supplies:
20 mV/dB Slope, 95 dBm Intercept
0.4 dB RSSI Linearity up to 200 MHz
* Fully Differential Inputs, RIN = 1 kO,
* Single Supply of +2.7 V to +6.5 V at
* Programmable Limiter Gain and
Differential Outputs to 10 mA,
Overall Gain 90 dB, Bandwidth 400 MHz
Constant Phase (Typical 56 ps
* 500 ns Power-Up Time, <1 mA
