#35 case standard tractor backhoe attachment 580 c d e
Hello . I have a Case #35 backhoe attachment for sale. It fits a Case 580C Tractor Loader. It is the Case factory Standard Hoe that Case Mfg'd for the 580C It is not an after market hoe. It is not an extendahoe, although it could be converted with a kit provided by Case....if it is still available. At present, there is not bucket or bkt pins. I may be able to find a bucket at a reasonable price. Let me know desired size after sale takes place.

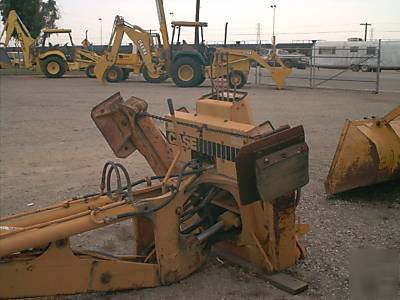

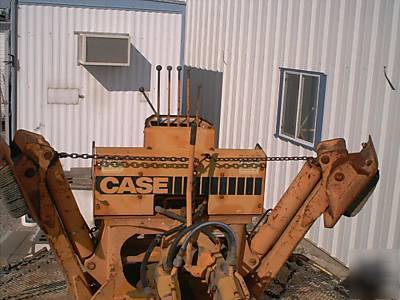

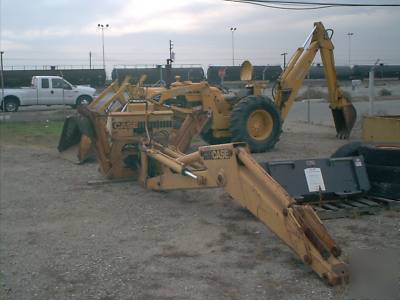

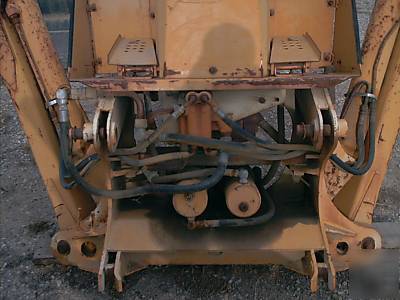

Some stats: Weight approx 3300 lbs. top pin slots 1 3/16". Center to center betw L and R top pin slots= 28 3/16" . Center to Center betw L and R lower slots= 27 5/16" , distance c/c betw L top and L lower pin slots 18 3/4 ...and same for R side. The attachment as pictured in the photo is 17'6" long 85" wide at the stabilizer pads , 60" tall from ground to top of levers.
I have seen the #35 for the 580C installed on the Case 580D and 580E and hoes of the D and E installed on the C . But, some extra work has to be done to make them fit.My understanding the D and E used the #35 w/ minor changes. They are very close , but extra time/labor must be expended for a good positive fit The hold down clamps and rods are not with the attachment. If your tractor has a mod hitch /scraper, the hold down s/b the same . Verify that info with the Case dlr.
I bought this from a man who was told it would fit on the back of a approx 50 hp ag tractor. He realized it was way too heavy. It requires a substantial sub frame like todays loader backhoes . These attachments are really just a slave to the tractors hyd system. That being said, make sure you have adequate hyd flow too if you want to mount on something not a Case . I would guess this attachment has between 1500 and 2500 hrs . Some of the hoses are weather cracked. One swing and one boom cyl has a small leak. The rods that are exposed are not rusted or pitted.
