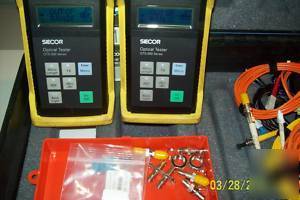

Siecor corning ots-300 ser optical test - ots-311D (2)
The OTS-300 Express Series includes intelligent, versatile optical meters, sources, and testers that imultaneously
test and store dual wavelength attenuation measurements. The synchronized meter and source alternates between wavelengths to continually update the displayed data. This process cuts testing time in half and prevents costly errors
from mismatched source and meter wavelengths. At the press of a button, dual wavelength results are stored and the next fiber measured. These test sets are used during installation, system qualification, and maintenance. The combination of practical features, simple operation, field performance, and rugged design make them perfect for virtually all fiber optic testing environments from multimode LAN to single-mode telephony and CATV.
Meter Specifications OTS-310 Meter /
OTS-311D and OTS-312XD Testers
Fiber Type Multimode and single-mode: 100/140 m to 9/125 m
Wavelength Range 800 to 1600 nm
Calibrated Wavelengths 850, 1300, 1310, 1550 nm
Measurement Range +3 to -70 dBm (standard) / +20 to -60 dBm (CATV)
Auto mode: +3 to -55 dBm (multimode) / +3 to -60 dBm (single-mode) / +3 to -45 dBm (CATV)
Accuracy 0.2 dB at reference conditions, traceable to NIST calibration standards
Linearity (at 23 C) 1300/1310/1550 nm: 0.1 dB from 0 to -60 dBm
850 nm: 0.1 dB from 0 to -50 dBm
Resolution 0.01 dB / 0.1 dB (selectable)
Connector Adapters ST compatible, FC, SC, DIN (interchangeable)
Optical Specifications LEDs Lasers
