Manta mts-1030 three-phase multifunction power meter @@

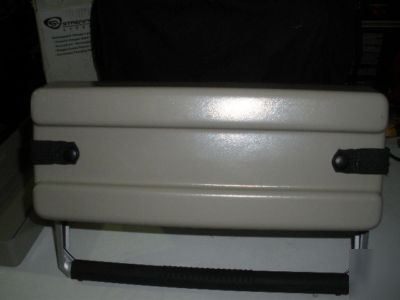

You are looking at a very nice MANTA MTS-1030 Three Phase Multifunction Powermeter. The unit comes with very nice black canvas bag, leads, software, the description is as follows;
MTS-1030 Three-Phase Multifunction Powerrmeter
* Ten simultaneous measurements
* Very responsive controls and displays
* High ampacity current inputs
* True RMS, fully autoranging
* Phasor display of AC quantities
* Optimized for relay and meter applications
* High intensity LED displays
* 120 VAC/60 Hz version: 100-130VAC at 50-70Hz
* 240 VAC/50/50 Hz version: 220-260VAC at 47-70Hz
* Internal 12VDC battery pack for 7 hour operation
* Ranges: 8.00 - 99.99Hz (low scale), 8.0-500.0 Hz (high scale)
* 0.001 Hz for 8.000-9.999 Hz input
* 0.01 Hz for 10.00-99.99 Hz input
* 0.1 Hz for 100.0-650.0Hz input
* Accuracy: +/-0.01 Hz (low scale), +/- 0.1 Hz (high scale)
* Measurement speed is dependent upon input frequency
* for 60 Hz input: 2 readings/sec (normal mode), 7.5 readings/sec (high speed mode)
* for 50 Hz input: 1.6 readings/sec (normal mode), 6.3 readings/sec (high speed mode)
* Range: 0.0ms - 9999 sec, autoranging at the end of each decade
* Resolution: 0.1ms (lowest scale)
* Accuracy: +/-0.5 ms (0-10 seconds), +/-0.01% (10-9999 seconds)
* Range: 0.0 - 9999 cycles, autoranging at 999.9 cycles
* Resolution: 0.1cycles (lowest scale)
* Accuracy: +/-0.1cycles (lowest scale)
* Ranges: 0.0 to 360.0 degrees or +/-180.0
* Resolution: 0.01 degree for readings from -9.99deg to 10.00 degrees, 0.1 degree otherwise
* Accuracy: +/-0.5 deg. down to 2V/200mA
* True RMS responding, DC coupled
* Measures any combination of phase-to-ground or phase-phase voltage selected by front panel color coded pushbuttons
* Accuracy: +/-0.4% of reading +/- 0.15% of scale
* Ranges: 0-19.99/ 199.9/ 1999V, autoranging at 19.99, 199.9V
* Maximum input: 600VAC continuous
* Resolution: 0.01V (lowest scale)
* Input impedance: 2 megohms
* Measurement speed: 3 readings/sec (normal mode), 30 readings/sec (high speed mode)
* True RMS responding, AC coupled
* Measures any combination of phase-to-ground or phase-phase vector selected by front panel pushbuttons
* Ranges: 0-1.999/ 19.99/ 199.9A, autoranging at 1.999, 19,99A
* Maximum input: 75A continuous, 125A for 5 seconds
* Resolution: 0.001A (lowest scale)
Power measurements are calculated by the internal microprocessor from the current, voltage and phase angle measurements.
* Resolution: up to 0.001kWatt
* Resolution: up to 0.001kVAR
* Range: -63.0 to +63.0 kVAR
* Resolution: up to 0.001kVA
* Accuracy: +/- 0.004 for sinusoidal inputs
* Floating three-terminal inputs for start and stop triggers
* Change of state detection for contact or AC/DC voltage (30-300V)
* Contact inputs protected to 300V AC/DC
* Input impedance: 60kohm minimum
* Selectable audio tone for continuity indication of stop trigger
* Start trigger starts timer, increases update frequency of voltage, current, phase and frequency readings
* Stop trigger stops timer and freezes all measurement readings
* Data format: 8 bits, no parity, 1 start bit, 1 stop bit
* Speed: Standard baud rates from 1100 to 9600 baud
* Connector: Standard 25-pin female DB-25, DCE configuration
* Permits control of all meter functions for fully automated or semi-automated testing
* Permits automated output and recording of all measurements
* Moulded ABS plastic front/rear covers
* Integrated carry handle/tilt stand
* Large rear feet allow vertical operation
* Dimensions: 14"W x 6"H x 10.5"D (35.56cm W x 15.36cm H x 26.88cm D)
* Weight: 15.8 lbs/7.2kg (22.2lbs/10.1kg including battery)
