Budzar btu multi-zone electrically heatedtemp. unit


Budzar B.T.U. Multi-Zone Electrically Heated Temperature Control Unit
TEMPERATURE RANGE: 50 to 250 F maximum
* Heavy duty angle iron framework
* Sheet metal safety skins design for easy removal
* 30 GPM @ 30 PSI centrifugal type, stainless steel impeller
* Close-coupled with 300OF mechanical seal
* 1.5 H.P., TEFC, 3500 RPM motor
* Flange mounted for easy service
* Heater interlocked with pump so that heater cannot operate without fluid flow
* Closed Loop via 8.1 sq. ft. heat exchanger
* Copper "U" tube, flange mounted bundle to steel shell for easy service
* Automatic solenoid cooling control valve
* Pressure relief valve factory set
* Low pressure safety switch protection against a low fill pressure condition that could damage the heater or cause the pump to run dry
* NEMA 12 Electrical Enclosure
* Motor starter with overload protection
* Modular electronic solid state

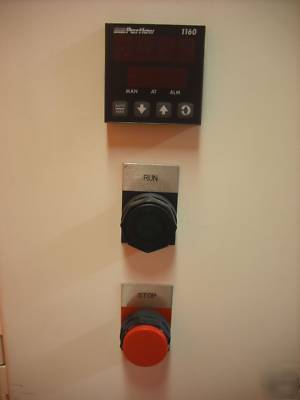

* Full featured PID controller
* Dual digital readout for set point and process temperature
* One (1) Automatic air vent
