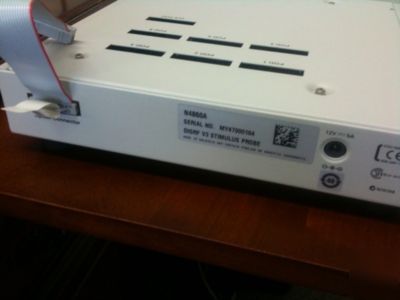

Agilent N4860A stimulus probe
Recent lease return in excellent condition. Comes with 7 day warranty.
The N4860A digital stimulus probe and N4850A digital acquisition probe operate in conjunction with 16800 and 16900 Series logic analyzers. The probes provide digital acquisition and serial stimulus capabilities required for DigRF v3 based IC evaluation and integration.
The integration of DigRF v3 logic analysis tools with the Agilent RF portfolio provides cross-domain solutions that will help you rapidly deploy your DigRF v3-based designs.
DigRF v3 Compliant Digital Stimulus
* Maximum stimulus speed: 312 Mbps
* Voltage level support: 1.8 V LVDS, 1.2 V LVDS, SLVDS
* SysClk speed support: 19.2 MHz, 26.0 MHz, 38.4 MHz
* Over air standard support: 2.5G and 3GPP (e.g. GSM, EDGE, CDMA, CDMA-2k, W-CDMA)
* Converts raw IQ and control information to DigRF v3-compliant data and control packets
* Provides continuous DigRF v3 stimulus to replace a missing BB-IC or RF-IC
* Enables modification of critical control settings while looping
* Responds to "Clear to Send" per the DigRF v3 specifications
Methods for Creating Raw Digital IQ in Simple ASCII Format
* Advance Design System (ADS)
* Custom programming package
* Captured logic analyzer trace converted to digital stimulus
* Requires probe N4850A DigRF v3 Digital Acquisition Probe
* Requires 16800 or 16900 Series 68-channel (or more) logic analyzer with a pattern generator
* Connects to target using SMA (m-m) connectors
* Refer to data sheet for more information
