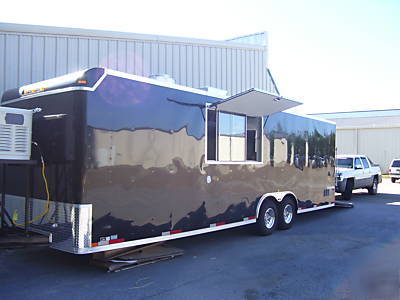

> 8'X28' mobile kitchen / concession trailer custom built
8'X28' mobile kitchen / concession trailer custom built
*We can customize any size unit with any layout of equipment. Contact us for free quote! (***) 307-6109*
This is a Great unit for off-site catering or disaster response unit.
* Heavy Duty all Steel Framed Structure
* 16" O.C. walls, floor, and ceiling
* Tandem Axle, 5200lb per axle
* Breakaway Switch w/ Charger
* I.C.C lighting with sealed tail lights
* .030 Gauge Aluminum Exterior- SEVERAL COLORS TO CHOOSE FROM
* Aluminum Tread plate flooring with 3/4" Treated plywood subfloor
* White FRP panels on interior walls- 3/8" plywood underneath
* White vinyl coated Ceiling Liner
* 36" Range, Gas- 6 burner with Standard Oven

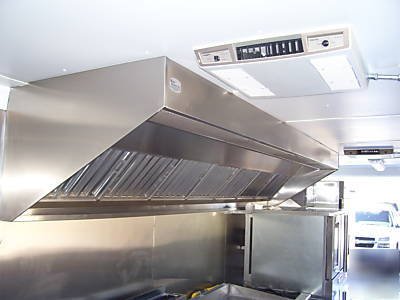

* 13' Exhaust Hood System with Exhaust and Supply fans. S/S backsplash
* 49 cu.ft Refrigerator, Reach-in, S/S
* 49 cu.ft Freezer, Reach-in, S/S
* 27" Refrigerated Sandwich Prep Table

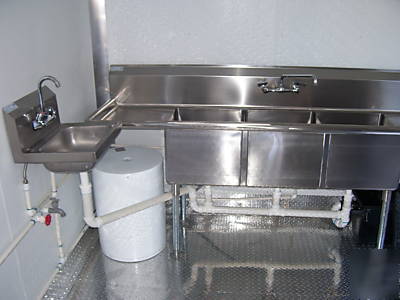

* 3 compartment sink, 18"x18"x14" compartments with (2) 18" drainboards
* Prep tables and serving counter
* 24"x36" Wire Shelving Unit for dry storage
* (2) 13500BTU roof mounted air conditioners
* VaporTight Flourescent light fixtures- (2-bulb, 4 ft.)
* 74"x40" Concession Door with Serving windows

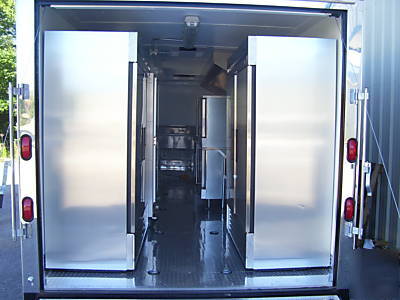

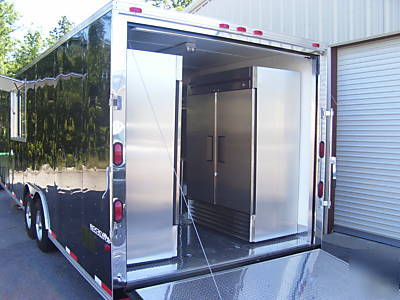

* Rear ramp door- Allows easy access to unit for catered events and loading/unloading
* Potable water system - includes 32 fresh water tank, ShurFlo water pump, 9 gal hot water heater, 7 gal grease trap, 38 gal grey water
* 125 amp electrical service with 25' 50 amp Shoreline
* All electrical and plumbing installed
* Additional outlets to allow for countertop equipment
What makes our Units BETTER? Here are just a few of the reasons.
1. Our commercial foodservice knowledge allows us to create a commercial application within the mobile unit.
2. We use ALL NSF equipment.
3. Our trailers are built to meet YOUR specific needs. We do NOT simply convert cargo trailers. We build them just for YOU.
4. Work space is maximized in the unit. You're able to work comfortably. This increases productivity and moral.
5. Our Hood systems are equipped with SUPPLY fans. This helps balance air flow within the unit. The same method used in restaurant applications.
6. Our trailers tow very well. We are always given compliments on how well our units tow.
I believe it's in our best interest to help your business succeed. That's what I want to do. Call us for a free quote! (***) 307-6109
Check out our WEBsite
or email us at ****@CFSEquip.com
(***) 307-6109 for Tim McLemore
