> Ibag 40,000 rpm high speed milling spindle for vertical
Ibag 40,000 rpm high speed milling spindle for vertical

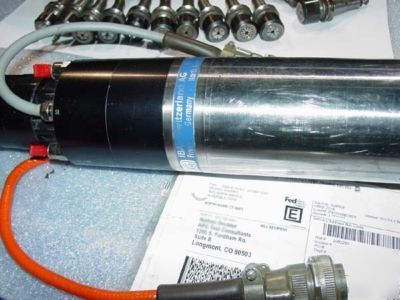

IBAG HIGH SPEED MILLING SPINDLE
Spindle is all self-contained and designed to easily replace most OEM
Milling Spindles. Simple Flange Mount on Spindle. All Wiring and
Chiller Lines have quick disconnect couplings. Includes Free Standing
Chiller and Drive Unit. These Spindles are used for Production
Manufacturing, Electrodes, and for Mold and Die Machining. Materials
cut include Hardened Steel, Aluminum, Brass, Copper, Graphite, and
(2) HF80 High Speed Spindles, One we just removed from a machine and
it is in Excellent Condition. The Other was Factory Rebuilt By IBAG
and has been Unused since the Rebuild.
IBAG Variable Speed High Frequency Drive Unit with Built-in Chiller,
SKI20 Spindle Taper, (26) Toolholders, Each Spindle Has a Programmable
Power Draw Bar that can be used with ATC or Push Button, (1) Wiring
Spindle RPM........................................ 10,000 - 40,000 RPM
Spindle Power Rating................................ 3.2 KW
Torque............................................. 0.8 Nm
Spindle Taper...................................... SKI-20
Approximate Spindle Dimensions..................... 108" x 75"
Approximate Spindle Height......................... 79"
Approximate Spindle Weight......................... 30 LBS
CONDITION: One we just removed from a machine and it is in Excellent
Condition. The Other was Factory Rebuilt By IBAG and has been Unused
since the Rebuild. 1 Spindle and Drive unit replaces for over 32,000,
