Squared 5S8F 5KVA pri:277V sealed transformer, 120/240V

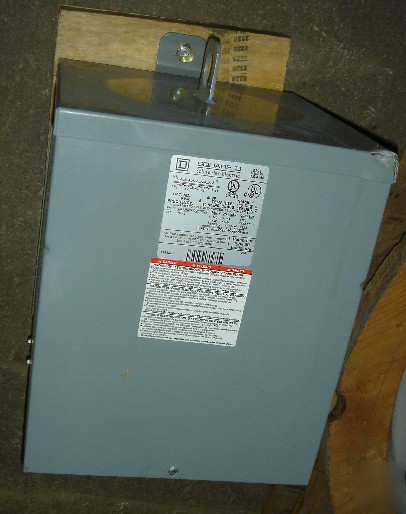

SquareD 5S8F Sealed Transformer - New!
Primary: 277VAC, Secondary: 120/240VAC
Application: General Purpose - Intended for power, heating and lighting applicationsApprovals: UL Listed - CSA CertifiedEnclosure Rating: NEMA 3RCatalog Reference Number: 7400CT9601Enclosure Code: 13BEnclosure Material: Painted SteelEnclosure Type: Rainproof and Ice/Sleet proof (Indoor/Outdoor)Height: 14.75 InchesMounting Type: WallRating: 5kVAInsulation Temperature: 180 Degrees CTemperature Rise: 115 Degrees CMounting Brackets: Wall mounting brackets are standard part of enclosureWinding Material: AluminumDepth: 11.75 InchesWidth: 9.75 InchesPrimary: 277VACSecondary: 120/240VACFull Capacity Taps: NonePhase: 1-PhaseWeathershield: Not required for outdoor use
