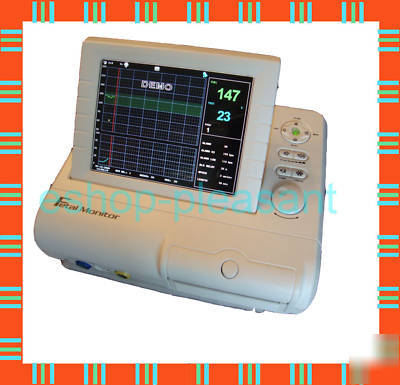

Single/twins optional fetal monitor
Fetal monitor is a lightweight, space-saving fetal monitor, ensure external and internal monitoring parameters. It can be used up to and during the second stage labor. It also can be connected to the obstetrical central station to build central monitoring system.
Optional Single, Twins Monitoring
Standard Single Monitoring and if you want twins pls contact us
* Light weight, space-saving, easy operation
* 8.4-inch screen color LCD display, rotate screen to 60
* Print paper fetal heart rate 120-160bpm
* Manual records fetal movement
* Audible and visual alarm for high and low fetal heart rate
* Continuous 24-hour real-time monitoring function
* Continuous 12-hour patient curve and data storage and playback
* Single, Twins Monitoring optional
* Extra-long life, high-resolution built-in thermal printer
* Built-in communication port, can be connected with central monitoring system
* Security: IEC 60601-1-4, IEC 60601-1-2
* Anti-shock types: Type I, no internal power supply
* Anti-electric Shock Degree: B
* Power Supply: Working Voltage: AC 100V ~ 240V
Temperature: -10 C ~55 C
Atmospheric pressure: 70kPa ~ 106kPa
Dimensions: 8.4" color LCD display, folding 60 degree
Display Content: bed No. , pregnancy age, age, single/twins type, paper speed, date, time, volume, alarm status, transducer connection status, recorder status, FHR data and wave, Contraction data and wave, Fetal move times and mark etc.
Record Paper two-double type Z
Work Frequency: 1.0MHz 10%
FHR Rang: 65BPM 210BPM Allow error: within 2bpm
* Fetal Marking: For the manual button (the operation of pregnant women), there will be a mark display in the bottom area of FHR wave display section
* FHR Alarm: Alarm for high and low FHR, which exceeds appointed limit
System: Passive Straingauge
* Dimension: 320(L) x 260(W) x 80(H) mm
