Leader LV5750 portable multi sdi monitor

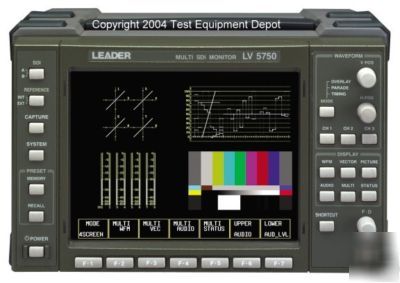

Leader LV5750 Portable Multi SDI Monitor
* Monitors SMPTE-259M, SMPTE-292M, SMPTE-296M
* Auto Detects HD-SDI and SD-SDI, 525/60 and 625/50
* Auto Detection of Ext. Ref. BB/Tri-Level Sync
* Switched SDI Output of Selected Input
* Total Digital Signal Processing
* Multi-Display Modes including Sub Frames
* Parade/Overlay/Timing (YCbCr/YRGB/RGB)
* Full Digital Line Select with Strobe
* Electronic Graticules are Selectable
* Timing for Component Interchannel Errors
* Special Active and H Blanking Measurement Modes
* Selectable Colorimetry as Needed
Multiformat HD-SDI and SD-SDI monitor features a color XGA (1024 x 768) LCD screen waveform monitor for signals. SDI inputs support auto detection of twenty standard formats. Selected SDI input signals are reclocked and output to an active serial output. Complete digital processing of SDI signals enables highly accurate measurements. Test modes include waveform, vector, picture, audio, and status displays with time code. Displays and sub-displays can be viewed in various combinations side by side or as a four in one multi-display. A composite signal conversion converts SDI component signals into pseudo-composite waveform or vector for NTSC or PAL.
