Twinhorn vk-1060 with fanuc oi-mc control
used Twinhorn VK-1060 CNC Vertical Machining Center with Fanuc Oi-MC Control, 24 Tool Arm Type, Coolant Through Spindle.

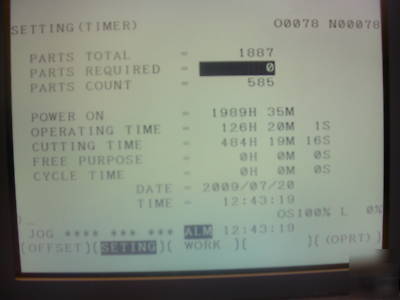

Machine install on February 2007, very low hour and condiction of this machine is almost like new
Fanuc Oi-MC & 320 Meters Memory Fanuc 20 HP Spindle Motor
AC Digital Servo & Spindle Drivers Spindle CAT-40 with 10000 RPM
PCMCIA Slot for Memory Expansion Spindle Oil Refrigeration Unit
Helical Interpolation & Custom Macro B Arm Type 24 Tool ATC
Hardened Ground Box Ways on X,Y & Z Auto Lubrication System
Meehanite Cast Iron Bed, Base & Headstock Fully Enclosed Splash Guard
Heat Exchanger for Electrical Cabinet Spindle Air Blast & Cutting Air Blast
Automatic Power off (M30) Spindle Air Curtain
Roll Out Coolant Tank & Chip Tray RS232 Interface
4th Axis Interface Cable only Ready Coolant Through Spindle
Travel X Axis - 40.16 (1020mm)
Travel Y Axis - 23.60 (600mm)
Travel Z Axis - 21.65 (550mm)
Rapid Feed Rate X & Y Axis - 787ipm
Rapid Feed Rate Z Axis - 787ipm
Cutting Feed Rate - 315ipm (8000mm/min)
Positioning X, Y & Z Axis - 0.0001/12 (0.005mm / 300mm)
Repeatability X, Y & Z Axis - 0.0001 ( 0.003mm)
Table Dimension - 43.31 x 21.65 (1100mm x 550mm)
Maximum Loading - 1,760 lb (800Kg)
Spindle Motor - FANUC AC Spindle Motor 22 / 7000i
Servo Drive Motor X & Y Axis - Fanuc 22 / 3000is
Servo Drive Motor Z Axis - Fanuc 22 / 3000is
Distance from Spindle Nose to Table - 5.9 27.56 (150 700mm)
Distance from Spindle to Column - 25.20 (640mm)
ATC - Swing Arm Type Random, Shortest Path, Bi-Directional
Maximum Tool Weight - 15.4 lb (7.0kg)
Maximum Tool Length - 11.81 (300mm)
Maximum Tool Diameter - 3.14 (80mm)
Floor Space L x W x H - 172 x87 x105 (4380mmx2200mmx2650mm)
Power Requirement - 220V, 3 Phase, 60Hz, 30kVA, 75Amp
Machine Weight - 13,200 lb (6,000 kg)
Question please E-mail ****@avtechmachine.com
