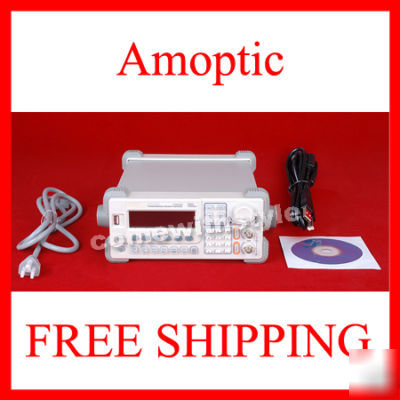

Function/arbitrary waveform generator 20MHZ w/ce
* Simulation of analog ensor and real word signals.
* In-circuit Functional test.
* Intuitionstic user interface.10 standard waveforms.
* Arbitrary waveform defined by user.
* Versatile modulation and varity of waveforms.
* Versatile input and output.
* High accuracy and wide band width frequencuy counter range up to 200MHZ.
* USB host,to support disk storage.
* seamless connectivity with DS series digital oscilloscopes.
* Multi language user interface,built-in help system. .
* USB Host, to support USB disk storage
* 2 analog output,20MHZ output.
* 100MSa/s maximum sample rate,14 bits vertical resolution,4kpts waveform length.
* Built-in high precise counter,the frerquency is up to 200MHZ.
* Standard Waveforms Sine, Square, Ramp, Pulse, Noise, Exponential Rise, Exponential Fall, Sinc, Cardiac, DC.
* White noise:5MHz bandwidth(-3dB)
* Arbitrary waveform:1 Hz-5MHz
* Waveform length:2pts-4kpts.
* Amplitude resolution:14bits
* Amplitude:2mVpp-110Vpp,4mVpp-20Vpp.
* Modulation mode:AM,FM,PM,FSK-internal or external.
* Frequency od modulation waveform:2mHZ-20kHZ
* Counter range:100mHz-200MHz
* Sweep: linear or logarithmic
* Power supply:AC;100V-240V,45Hz-450Hz,40Va Max.
* All our signal generators are provided 1-year warranty by us from the date you make a purchase. An replacement or repairment will provided by us when a faulty is developed within the warranty.
* We stand behind every product we sell. If you are not pleased with your purchase, we'll be happy to make an exchange or refund the product price (less S&H fees) within seven (7) days of your purchase. Please email us for a RMA # before you send your order back. For detail return procedures, please check our Return Instruction
Direct from Factory ! Retail Value: $1088 !
