> New 8.4" veterinary 6-parameter patient monitor+printer

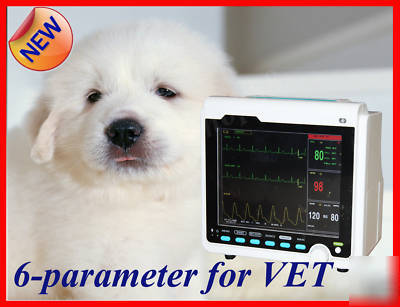

New 8.4" veterinary 6-parameter patient monitor+printer
4-2.jpg picture by risingmed001 5-1.jpg picture by risingmed001
6-1.jpg picture by risingmed001 7-1.jpg picture by risingmed001
Multi-parameter Patient Monitor for VETERINARY
(SPO2, ECG, RESP, NIBP, TEMP, PR)
Unique digital SPO2 technology with excellent measurement and interference-free
Audible and visual alarms with adjustable alarm range
Anti electrosurgical interference and defibrillation
Can be connected with LAN to work with central monitoring system
Powerful data management and storage capacity
ECG, NIBP, SPO2, RESP, TEMP, PR, Built-in rechargeable battery
2-TEMP, 2-IBP, ETCO2, Network, Thermal Recorder
Lead Mode: 5 Leads (R, L, F, N, C or RA, LA, LL, RL, V)
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
HR and Alarm Range: Adult: 15 ~ 300 bpm
Accuracy: 1% or 1bpm, which great
Differential Input Impedance: >5M
Electrode offset potential: 300mV
Baseline Recovery: <3s after Defi.
Calibration Signal: 1mV (Vp-p), 5% Accuracy
ST Segment measure and alarm: -2.0 ~ +2.0 mV
Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90Min
Measuring Period in STAT Mode: 5 Min
Pulse Rate Range: 40 ~ 240 bpm
Adult Mode: SYS: 40 ~ 270 mmHg
Pediatric Mode: SYS: 40 ~ 200 mmHg
Neonatal Mode: SYS: 40 ~ 135 mmHg
Actualization interval: About 1Sec.
Measuring and Alarm Range: 0~254bpm
Method: Impedance between R-F(RA-LL)
Differential Input Impedance: >2.5M
Measuring Impedance Range: 0.3~5.0
Base line Impedance Range: 0~2.5 K
Measuring and Alarm Range: 0 ~ 50
Actualization interval: about 1 Sec.
Average Time Constant: <10 Sec.
1-3.jpg picture by risingmed001 2-2.jpg picture by risingmed001 3-2.jpg picture by risingmed001
Temp probe and ECG cable SPO2 probe and NIBP cuff power cable and adapter
334548252_o.jpg picture by risingmed001 IMG_1043.jpg picture by risingmed001
ECG cable for VET SPO2 probe for VET
4. ECG Cable and Five-lead Wire (integrated)
