Infineon rf transistors & mmics designer’s kit
This is a COMPLETE, FULLY STOCKED RF Transistors and MMICs Designer s Kit from Infineon, their PN B132-H7892-x-x-7600. It contains up to (10) each of a total of (56) different devices. The kit includes a booklet with brief specs of the parts included. Data sheets for the individual parts are available as described below.

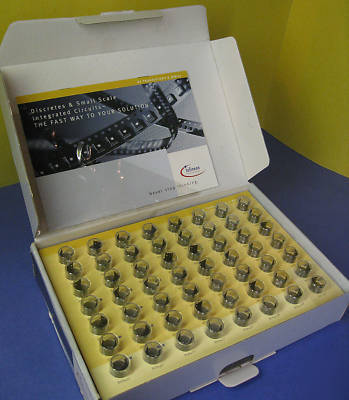

Devices included, along with actual quantities and basic application data, are as follows:
(10) BF517: for amplifier and oscillator applications in TV tuners SOT23 - http:// /dgdl/bf517.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011425d1a09605c8;
(10) BF770A: For IF amplifiers in TV-sat tuners and for VCR modulators SOT23 - http:// /dgdl/bf770a.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011425de62f205cc;
(10) BF771: For modulators and amplifiers in TV and VCR tuners SOT23 - http:// /dgdl/bf771.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011425e19af005d0;
(10) BF771W: For modulators and amplifiers in TV and VCR tuners - SOT323 - http://www.datasheetcatalog.org/datasheet/infineon/1-bf771w.pdf;
(10) BF772: For application in TV-sat tuners - SOT143 - http://www.datasheetcatalog.org/datasheet/infineon/1-bf772.pdf;
(10) BF799W: For linear broadband amplifier application up to 500 MHz, SAW filter driver in TV tuners SOT323 - http:// /dgdl/bf799w.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011425ebb43905de;
(10) BFP136W: For power amplifier in DECT and PCN systems - fT = 5.5GHz SOT343 - http://www.datasheetcatalog.org/datasheet/infineon/1-bfp136w.pdf;
(10) BFP180W: For low-power amplifier in mobile communication systems (pager) at collector currents from 0.2 mA to 2.5 mA - fT = 7 GHz - F = 2.1 dB at 900 MHz SOT323 - http:// /dgdl/bf799w.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011425ebb43905de;
(10) BFP181W: For low noise, high-gain broadband amplifier at collector currents from 0.5 mA to 12 mA - fT = 8 GHz - F = 1.45 dB at 900 MHz SOT343 - http:// /datasheets/parts/datasheet/216/BFP181W-pdf.php;
(10) BFP182W: For low noise, high-gain broadband amplifiers at collector currents from 1 mA to 20 mA - fT = 8 GHz, F = 0.9 dB at 900 MHz - http:// /dgdl/bfp182w.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef680114266e035c060b;
(10) BFP193: For low noise, high-gain amplifiers up to 2 GHz, linear broadband amplifiers - fT = 8 GHz, F = 1 dB at 900 MHz SOT143 - http:// /dgdl/bfp193.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef6801142674fdc3061b;
(10) BFP193W: For low noise, high-gain amplifiers up to 2 GHz, linear broadband amplifiers - fT = 8 GHz, F = 1 dB at 900 MHz SOT343 - http:// /dgdl/bfp193w.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef6801142678c81e061f;
(10) BFP196: For low noise, low distortion broadband amplifiers in antenna and telecommunications systems up to 1.5 GHz at collector currents from 20 mA to 80 mA, power amplifier for DECT and PCN systems - fT = 7.5 GHz, F = 1.3 dB at 900 MHz SOT143 - http:// /dgdl/bfp196.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef680114267c0ec70624;
(10) BFP196W: For low noise, low distortion broadband amplifiers in antenna and telecommunications systems up to 1.5 GHz at collector currents from 20 mA to 80 mA, power amplifier for DECT and PCN systems - fT = 7.5 GHz, F = 1.3 dB at 900 MHz SOT343 - http:// /dgdl/bfp196w.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef680114267ecec60628;
BFR93AW: For low distortion broadband amplifiers and oscillators up to 2 GHz at collector currents from 5 mA to 30 mA SOT323 - http:// /dgdl/bfr93aw.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431441fb5d0114acaaec8c148f;
(10) BFR106: For low noise, high-gain amplifiers, linear broadband amplifiers, antenna amplifiers SOT23 - http:// /dgdl/bfr106.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef6801142686f2030637;
(10) BFR180W: For low-power amplifiers in mobile communication systems (pager) at collector currents from 0.2 mA to 2.5 mA - fT = 7 GHz, F = 2.1 dB at 900 MHz SOT323 - http://www.datasheetcatalog.org/datasheet/infineon/1-bfr180w.pdf;
(10) BFR182: For low noise, high-gain broadband amplifiers at collector currents from 1 mA to 20 mA - fT = 8 GHz, F = 0.9 dB at 900 MHz SOT23 - http:// /dgdl/bfr182.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef680114268f4d130640;
(10) BFR182W: For low noise, high-gain broadband amplifiers at collector currents from 1 mA to 20 mA - fT = 8 GHz, F = 0.9 dB at 900 MHz SOT323 - http:// /dgdl/bfr182w.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef680114269d1e43064c;
(10) BFR183: For low noise, high-gain broadband amplifiers at collector currents from 2 mA to 30 mA - fT = 8 GHz, F = 0.9 dB at 900 MHz SOT23 - http:// /dgdl/bfr183.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011426a1b8f80656;
(10) BFR183W: For low noise, high-gain broadband amplifiers at collector currents from 2 mA to 30 mA - fT = 8 GHz, F = 0.9 dB at 900 MHz SOT323 - http:// /dgdl/bfr183w.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011426a4b0210658;
(10) BFR193: For low noise, high-gain amplifiers up to 2 GHz, linear amplifiers - fT = 8 GHz, F = 1 dB at 900 MHz SOT23 - http:// /dgdl/bfr193.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011426adab31066c;
10) BFR193W: For low noise, high-gain amplifiers up to 2 GHz, linear amplifiers - fT = 8 GHz, F = 1 dB at 900 MHz SOT323 - http:// /dgdl/bfr193w.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011426b3b6650674;
(10) BFR280W: For low noise, low-power amplifiers in mobile communication systems (pager, cordless telephone) at collector currents from 0.2 mA to 8 mA - fT = 7.5 GHz, F = 1.5 dB at 900 MHz SOT323 - http://www.datasheetcatalog.org/datasheet/infineon/1-bfr280w.pdf;
(10) BFR340F: For low-current amplifiers and oscillators, low voltage/low current operation, high insertion gain fT = 14 GHz TSFP-3 - http:// /dgdl/bfr340f.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011426b5ce300676;
(10) BFR360F: For low-noise amplifiers, for oscillators up to 3.5 GHz and Pout > 10 dBm - low noise figure: 1.0 dB at 1.8 GHz TSFP-3 - http:// /dgdl/bfr360f.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011426bc17c4067f;
(10) BFR380F: High current capability and low figure for wide dynamic range application, ideal for low phase noise oscillators up to 3.5 GHz - low noise figure: 1.1 dB at 1.8 GHz TSFP-3 - http:// /dgdl/bfr380f_preliminary.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef68011426c34e340686;
(10) BFR949T: For low noise, high-gain broadband amplifiers at collector currents from 1 mA to 20 mA - fT = 9 GHz, F = 1.0 dB at 1 GHz SC75 - http://www.datasheetcatalog.org/datasheet/infineon/1-bfr949t_2.pdf;
(10) BFS17W: For broadband amplifiers up to 1 GHz at collector currents from 1 mA to 20 mA SOT323 - http:// /dgdl/bfs17w.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef680114270c42a906bd;
(10) BFP405: For low current applications, for oscillators up to 12 GHz - Noise figure F = 1.25 dB at 1.8 GHz, outstanding Gms = 23 dB at 1.8 GHz SOT343 - http:// /dgdl/bfp405.pdf?folderId=db3a30431400ef68011425b291f205c5&fileId=db3a30431400ef68011427753c330778;
(10) BFP405F: For low current applications, for oscillators up to 12 GHz - Noise figure F = 1.25 dB at 1.8 GHz, outstanding Gms = 23 dB at 1.8 GHz, Transition frequency fT = 25 GHz TSFP-4 - http:// /dgdl/bfp405f.pdf?folderId=db3a30431400ef68011425b291f205c5&fileId=db3a30431400ef6801142770426c076c;
(10) BFP420: For high gain low noise amplifiers, for oscillators up to 12 GHz - Noise figure F = 1.1 dB at 1.8 GHz, outstanding Gms = 21 dB at 1.8 GHz, Transition frequency fT = 25 GHz SOT343 - http:// /dgdl/bfp420.pdf?folderId=db3a30431400ef68011425b291f205c5&fileId=db3a30431400ef6801142769cd120763
(10) BFP420F: For high gain low noise amplifiers, - Noise figure F = 1.1 dB at 1.8 GHz, outstanding Gms = 20 dB at 1.8 GHz, Transition frequency fT = 25 GHz TSFP-4 - http:// /dgdl/bfp420f.pdf?folderId=db3a30431400ef68011425b291f205c5&fileId=db3a30431400ef6801142763e30d0755;
(10) BFP450 - For medium power amplifiers - Compression point P-1dB = +19 dBm at 1.8 GHz, max available gain Gma = 15.5 dB at 1.8 GHz, Noise figure F = 1.25 dB at 1.8 GHz, Transition frequency fT = 24 GHz SOT343 - http:// /dgdl/bfp450.pdf?folderId=db3a30431400ef68011425b291f205c5&fileId=db3a30431400ef680114275d537d074b;
(10) BFP490 For high-power amplifiers - Compression point P-1dB = +26.5 dBm at 1.8 GHz, max available gain Gma = 8.5 dB at 1.8 GHz, Transition frequency fT > 17 GHz SCT595 - http:// /BFP490-datasheet.html;
(10) BFP520 - For highest gain low noise amplifier at 1.8 GHz and 2 mA / 2 V, Outstanding Gms = 23.5 dB, Noise Figure F = 0.95 dB, for oscillators up to 15 GHz, Transition frequency fT = 45 GHz SOT343 - http:// /dgdl/bfp520.pdf?folderId=db3a30431400ef68011425b291f205c5&fileId=db3a30431400ef680114275a86cd0745;
(10) BFP520F - For highest gain low noise amplifier at 1.8 GHz and 2 mA / 2 V, Outstanding Gms = 23 dB, Noise Figure F = 0.95 dB, for oscillators up to 15 GHz, Transition frequency fT = 45 GHz TSFP-4 - http:// /dgdl/bfp520f.pdf?folderId=db3a30431400ef68011425b291f205c5&fileId=db3a30431400ef68011427599d290744;
(10) BFP540 - For highest gain low noise amplifier at 1.8 GHz, Outstanding Gms = 21.5 dB, Noise Figure F = 0.9 dB SOT343 - http:// /dgdl/bfp540.pdf?folderId=db3a30431400ef68011425b291f205c5&fileId=db3a30431400ef68011427557da7073a;
(10) BFP540F - For highest gain low noise amplifier at 1.8 GHz, Outstanding Gms = 20 dB, Noise Figure F = 0.9 dB TSFP-4 - http://www.datasheetcatalog.org/datasheet/infineon/1-bfp540f_1.pdf;
(10) BFS480 - For low noise, low-power amplifiers in mobile communication systems (pager, cordless telephone) at collector currents from 0.2 mA to 8 m, fT = 7 GHz, F = 1.5 dB at 900 MHz - Two (galvanic) internal isolated transistors in one package SOT363 - http://www.datasheetcatalog.org/datasheet/infineon/1-bfs480.pdf;
(10) BFS481 - For low noise, high-gain broadband amplifiers at collector currents from 0.5 mA to 12 mA - fT = 8 GHz, F = 0.9 dB at 900 MHz - Two (galvanic) internal isolated transistors in one package SOT363 - http:// /dgdl/bfs481.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef680114270d383406be;
(10) BFS482 - For low-noise. high-gain broadband amplifiers at collector currents from 0.2 mA to 20 mA - fT = 8 GHz, F = 1.2 dB at 900 MHz - Two (galvanic) internal isolated transistors in one package SOT363 - http://www.datasheetcatalog.org/datasheet/infineon/1-bfs482.pdf;
(10) BFS483 - For low noise, high-gain broadband amplifiers at collector currents from 2 mA to 30 mA - fT = 8 GHz, F = 0.9 dB at 900 MHz - Two (galvanic) internal isolated transistors in one package SOT363 - http:// /dgdl/bfs483.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef6801142710876006c5;
(10) BFS17S - For broadband amplifiers up to 1 GHz at collector currents from 1 mA to 20 mA SOT363 - http:// /dgdl/bfs17s.pdf?folderId=db3a30431400ef68011425b1354605c1&fileId=db3a30431400ef6801142709577b06b6
(10) BFT92: For broadband amplifiers up to 2 GHz at collector currents up to 20 mA SOT23 - http://www.datasheetcatalog.org/datasheet/infineon/2-bft92.pdf
NPN Silicon Germanium RF Transistor:
(10) BFP620 - High gain low noise RF transistor - Provides outstanding performance for a wide range of wireless applications, ideal for CDMA and WLAN applications - Outstanding noise figure F = 0.7 dB at 1.8 GHz, F = 1.3 dB at 6 GHz, Maximum stable gain Gms = 21.5 dB at 1.8 GHz, Gma = 11 dB at 6 GHz SOT343 - http:// /dgdl/bfp620.pdf?folderId=db3a30431400ef68011425b291f205c5&fileId=db3a30431400ef680114274deb27072a;
(10) BFP620F - High gain low noise RF transistor - Provides outstanding performance for a wide range of wireless applications, ideal for CDMA and WLAN applications - Outstanding noise figure F = 0.7 dB at 1.8 GHz, F = 1.3 dB at 6 GHz, Maximum stable gain Gms = 21 dB at 1.8 GHz, Gma = 10 dB at 6 GHz SOT343 TSFP-4 - http:// /dgdl/bfp620f.pdf?folderId=db3a30431400ef68011425b291f205c5&fileId=db3a30431400ef680114274ce64f0729
(10) BGB420 - For high gain low noise amplifiers, ideal for wideband applications, cellular telephones, cordless telephones, SAT-TV and high frequency oscillators - Gma=17.5dB at 1.8GHz. Current easily adjustable by an external resistor, Open collector output, Typical supply voltage: 1.4-3.3V SOT343 - http://www.datasheetcatalog.org/datasheet/infineon/1-bgb420_1.pdf;
(10) BGB540 - For high gain low noise amplifiers, ideal for wideband applications, cellular phones, cordless telephones, SAT-TV and high frequency oscillators - Gms= 18dB at 1.8GHz, Current easily adjustable by an external resistor, Open collector output, Typical supply voltage: 1.4-4.3V SOT343 - http://www.datasheetcatalog.org/datasheet/infineon/1-bgb540.pdf
(10) BGA420 - Cascadable 50 -gain block, Unconditionally stable - Gain |S21|2 = 13 dB at 1.8 GHz, IP3out = +13 dBm at 1.8 GHz (VD = 3 V, ID = typ. 6.7 mA), Noise figure NF = 2.3 dB at 1.8 GHz, Reverse isolation > 28 dB and return loss IN / OUT > 12 dB at 1.8 GHz SOT343 - http:// /dgdl/bga420.pdf?folderId=db3a30431441fb5d0114b654e6581730&fileId=db3a304314dca3890115418cec781637;
(10) BGA427 - Cascadable 50 -gain block, Unconditionally stable - Gain |S21|2 = 18.5 dB or 22 at 1.8 GHz, IP3out = +7 dBm at 1.8 GHz (VD=3V, ID=9.4mA), Noise figure NF = 2.2 dB at 1.8 GHz, Typical device voltage VD = 2 V to 5 V, Reverse isolation > 35 dB SOT343 - http:// /dgdl/bga427.pdf?folderId=db3a30431441fb5d0114b654e6581730&fileId=db3a304314dca3890115418dca4d1638
Silicon Germanium Broadband MMIC:
(10) BGA428 - High gain, GMA = 20 dB at 1.8 GHz, Low noise figure, NF = 1.4 dB at 1.8 GHz - Prematched, Ideal for GSM, DCS1800, PCS1900, Open collector output, Typical supply voltage: 2.4 - 3 V SOT363 - http:// /dgdl/BGA428.pdf?folderId=db3a304314dca3890115410a91f9160e&fileId=db3a304314dca389011541135b691615
(10) BCR400W - Supplies stable bias current even at low battery voltage and extreme ambient temperature variation, Low voltage drop of 0.7V SOT343 - http:// /dgdl/bcr400w.pdf?folderId=db3a30431400ef68011407aa42770183&fileId=db3a30431400ef68011407e93d8601a1;
(10) BCR410W - Supplies stable bias current from 1.8V operating voltage - Low voltage drop: 110mV for 10mA collector current SOT343 - http:// /dgdl/bcr410w.pdf?folderId=db3a30431400ef68011407aa42770183&fileId=db3a30431400ef68011407f7356301a5
Silicon N-channel MOSFET Tetrode:
(10) BF2030 - For low noise, high gain controlled input stages up to 1GHz, Operating voltage 5V SOT143 - http:// /dgdl/bf2030series.pdf?folderId=db3a30431441fb5d0114ab95022d1351&fileId=db3a30431441fb5d0114ab9599a61352;
(10) BF2040 - For low noise, high gain controlled input stages up to 1GHz, Operating voltage 5V SOT143 - http:// /dgdl/bf2040series.pdf?folderId=db3a30431441fb5d0114ab95022d1351&fileId=db3a30431441fb5d0114abbae832137f
This is a fantastic selection of RF transistors and MMICs. If you need even a few of these for a project or project, this could be a great deal for you. If you have any questions about this, please e-mail me. I will usually reply within 24 hr. Thanks for looking.
SATISFACTION IS GUARANTEED on this item. If it doesn t work for you, let me know in 30 days or so, and I will refund your money.
