12" w 16" h leeds & northrup homo furnace 9462-u-15-2 f
12" W 16" H Leeds & Northrup HOMO FURNACE 9462-U-15-2 F
12" Width 16" Height Leeds & Northrup HOMO FURNACE 9462-U-15-2 FURNACE, Rated 1200 F

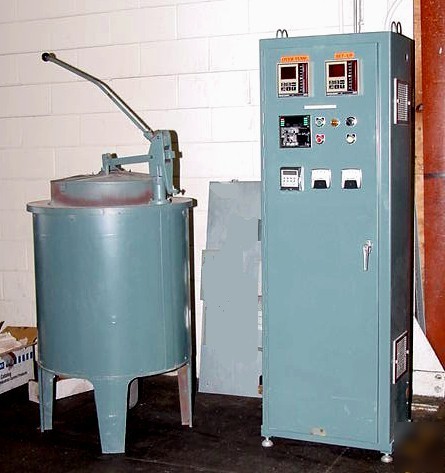

LEEDS NORTHRUP HOMO ELECTRIC FURNACE
Serial # 378823 Catalog # 9462-U15-2
Maximum Operating Temperature: 1200 Degrees F
Heater: 15 KW, 3 Phase, 220 Volts
Fan Motor: 3 Phase, 60 Cycle, 220 Volts
Refractory Brick with Inner Steel Liner
Chamber Size: 12" Diameter x 16" Deep Oven Chamber
Manually Operated Lid that Raises & Swings Out of the Way
Updated Barber-Colman Model 560 Controls
Wired for 3 Phase 60 Cycle 240 Volt ONLY Operation
Machine: 36" F-B x 32" L-R x 56" H x Approx. 350 Lbs.
Controls: 12" F-B x 36" L-R x 72" H x Approx. 150 Lbs.
